Module-Powertrain Control C1 (Standard) Connector End View (D3837A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_247-063-067-074-073

Part Description: Not Available

Connector No: D3837A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

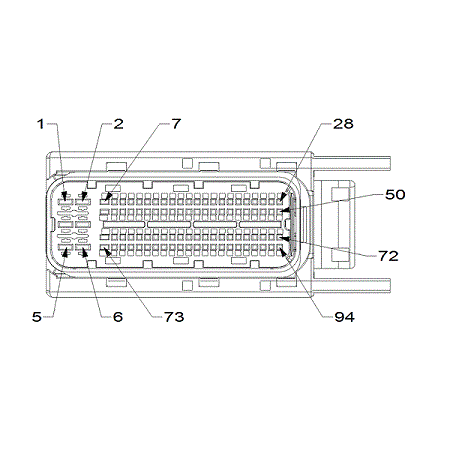

Fig 1: Module-Powertrain Control C1 Connector End View (Standard)
GCWD1014088Courtesy of CHRYSLER
Fig 2: Module-Powertrain Control C1 Component Location (Standard)
GCWD1253986Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F344 BN/GY 2.0 ASD RELAY OUTPUT N/A
2 Z909 BK 2.0 GROUND N/A
3 F342 BN/WH 2.0 ASD RELAY OUTPUT N/A
4 Z909 BK 2.0 GROUND N/A
5 F342 BN/WH 2.0 ASD RELAY OUTPUT N/A
6 Z909 BK 2.0 GROUND N/A
7 K79 BN/BU 0.75 O2 1/1 HEATER CONTROL N/A
10 K68 BN/GN 0.50 INLET AIR PRESSURE SIGNAL N/A
11 K648 DG/GN 0.50 INTAKE AIR HUMIDITY SENSOR SIGNAL N/A
12 C818 BU/OG 0.35 A/C PRESSURE 5 VOLT SUPPLY N/A
13 K188 BN/OG 0.50 MAF SUPPLY N/A
14 K354 VT/BU 0.50 EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY N/A
16 K852 GY/BU 0.50 5 VOLT SUPPLY N/A
17 K854 VT/BN 0.50 5 VOLT SUPPLY N/A
18 K110 BN 0.50 OIL PRESSURE SENSOR 5 VOLT SUPPLY N/A
19 K462 BN/WH 0.50 IAT 2 SIGNAL N/A
20 K757 BK/YE 0.50 SENSOR GROUND N/A
21 K142 DB/BU 0.50 MASS AIR FLOW SIGNAL N/A
22 K414 BN/YE 0.50 UREA SYSTEM / TANK LEVEL SIG 1 N/A
22 K181 BN/YE 0.50 FUEL PRESSURE SIGNAL 6.2L
23 D469 GY 0.50 PRIVATE CAN (+) N/A
23 F942 PK/VT 0.35 FUSED IGNITION SWITCH OUTPUT (RUN-START) N/A
24 X479 BN/DG 0.50 CRANKSHAFT PULSE SIGNAL (-) N/A
24 D27 BG/WH 0.35 CAN C (+) N/A
25 D28 YE 0.35 CAN C (-) N/A
27 T752 DG/OG 0.50 STARTER RELAY CONTROL N/A
28 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
29 X478 BN/GN 0.50 CRANKSHAFT PULSE SIGNAL (+) N/A
31 K69 BN/BU 0.35 ENGINE AIR INTAKE TEMPERATURE SIGNAL N/A
32 K49 VT/BU 0.35 ENGINE CHARGE AIR TEMPERATURE OUT SIGNAL N/A
33 D28 YE 0.35 CAN C (-) N/A
33 K50 VT/BG 0.50 ENGINE CHARGE AIR TEMPERATURE OUT RETURN N/A
34 C918 BK/BU 0.35 A/C PRESSURE RETURN N/A
35 K923 BN/WH 0.50 WATER IN FUEL SENSOR GROUND N/A
36 K951 VT/GY 0.50 EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND N/A
38 K167 BN/YE 0.50 APP SENSOR GROUND 1 N/A
39 K400 BN/VT 0.50 APP SENSOR GROUND 2 N/A
41 K936 BN/YE 0.50 EOP SENSOR GROUND N/A
42 K914 BN/WH 0.50 SENSOR GROUND N/A
43 K222 BN/YE 0.50 ECT 2 SIGNAL 6.2L
44 C18 BU/BN 0.35 A/C PRESSURE SIGNAL N/A
45 D468 GY/WH 0.50 PRIVATE CAN (-) N/A
46 K806 DB/BN 0.75 STOP START HOOD AJAR SW SIG 3.0L GAS 3.6L
48 N8 DB/PK 0.50 FUEL TANK PRESSURE SENSOR SUPPLY N/A
49 K175 BN/BU 0.50 RAD FAN CONTROL N/A
50 T762 DG 0.50 PCR RELAY CONTROL N/A
51 K402 DB/WH 0.75 SCR RELAY 2 CONTROL N/A
52 Z909 BK 1.5 GROUND N/A
53 Z909 BK 1.5 GROUND N/A
54 N10 DB/WH 0.50 FUEL TANK PRESSURE SENSOR RETURN N/A
54 F942 PK/VT 0.35 FUSED IGNITION SWITCH OUTPUT (RUN-START) N/A
55 D511 WH/BG 0.75 LIN BUS 6.2L
56 C18 BU/BN 0.35 A/C PRESSURE SIGNAL N/A
57 D27 BG/WH 0.35 CAN C (+) N/A
57 G123 VT/GN 0.50 WIF SENSOR 1 SIGNAL N/A
58 K46 DB/BU 0.50 BANK 1 TEMP SIGNAL 6.2L
58 K355 VT 0.50 EXHAUST DIFFERENTIAL PRESSURE SIGNAL N/A
59 K806 DB/BN 0.75 STOP START HOOD AJAR SW SIG N/A
59 K47 DB/YE 0.50 BANK 2 TEMP SIGNAL 6.2L
60 K23 BN/WH 0.50 APP SIGNAL 1 N/A
60 K49 VT/BU 0.50 ENGINE CHARGE AIR TEMPERATURE OUT SIGNAL 6.2L
61 K29 WH/BN 0.50 APP SIGNAL 2 N/A
61 N12 DB/GN 0.50 FPCM PWM FEEDBACK 6.2L
62 K302 BN/WH 0.50 CRANKCASE PRESSURE SENSOR SIGNAL N/A
63 K41 DB/BU 0.75 O2 1/1 SIGNAL N/A
64 K89 BN/GN 0.75 O2 1/1 POSITIVE CURRENT CONTROL N/A
65 K159 DB 0.50 FUEL TEMP SNSR RTN N/A
67 K400 BN/VT 0.50 APP SENSOR GROUND 2 N/A
68 K167 BN/YE 0.50 APP SENSOR GROUND 1 N/A
69 K854 VT/BN 0.50 5 VOLT SUPPLY N/A
69 K401 DB/YE 0.75 SCR RELAY 1 CONTROL N/A
70 K108 VT/GY 0.50 ESIM SIGNAL N/A
70 N116 DB 0.50 CRANKCASE VENT HEATER CONTROL N/A
72 Z909 BK 1.5 GROUND N/A
73 N9 DB 0.50 FUEL PUMP RELAY CONTROL N/A
73 K482 BN 0.75 DEF SUPPLY PUMP CONTROL N/A
74 F342 BN/WH 1.5 ASD RELAY OUTPUT N/A
75 F342 BN/WH 1.5 ASD RELAY OUTPUT N/A
76 F342 BN/WH 1.5 ASD RELAY OUTPUT N/A
76 T753 DG/YE 0.50 IGNITION CRANK SENSE N/A
77 K420 DB/OG 0.50 SENSOR GROUND N/A
77 T110 DG/YE 0.50 VACUUM PUMP RELAY CONTROL 3.0L GAS 3.6L
78 N112 DB/OG 0.50 RAD FAN RELAY CONTROL 3.0L GAS 3.6L
79 C13 BU/OG 0.35 A/C CLUTCH CONTROL N/A
79 K914 BN/WH 0.50 SENSOR GROUND N/A
80 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
80 K352 BN/OG 0.50 EGT SIGNAL N/A
81 T752 DG/OG 0.50 STARTER RELAY CONTROL N/A
81 K379 DB/GY 0.50 SENSOR GROUND N/A
82 K175 BN/BU 0.50 RAD FAN CONTROL HEAVY DUTY COOLING
82 N201 DB/GN 0.50 LOW SPEED RAD FAN CONTROL STANDARD DUTY COOLING
82 K384 BN/YE 0.50 EGT SIGNAL N/A
83 K900 DB/DG 0.50 SENSOR GROUND N/A
83 N11 DB/BG 0.50 FPCM PWM CONTROL 6.2L
84 K382 GY/BN 0.50 EGT SIGNAL N/A
85 K902 BN/DG 0.75 O2 RETURN (UPSTREAM) N/A
87 K156 GY/VT 0.50 FUEL TEMP SIGNAL N/A
88 N7 DB/OG 0.50 FUEL TANK PRESSURE SIGNAL N/A
89 K64 GY/VT 0.35 ENGINE AIR INTAKE TEMPERATURE RETURN N/A
90 D509 WH/OG 0.75 LIN BUS N/A
91 K29 WH/BN 0.50 APP SIGNAL 2 N/A
92 K23 BN/WH 0.50 APP SIGNAL 1 N/A
92 K31 BN 0.50 FUEL PUMP CONTROL N/A
93 K137 DB/OG 0.50 WASTEGATE SOL CONTROL N/A
93 K852 GY/BU 0.50 5 VOLT SUPPLY N/A
94 K52 DB/WH 0.50 EVAP PURGE CONTROL N/A
94 C13 BU/OG 0.35 A/C CLUTCH CONTROL N/A
95 K501 BN 0.50 COOLANT BYPASS VALVE CONTROL 3.0L GAS 3.6L
96 A209 RD 1.5 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
