Module-Glow Plug (Standard) Connector End View (D3913A)

Harness-Family: Engine

Color: DARK GREEN

Gender: FEMALE

Part Number: F654310

Part Description: Not Available

Connector No: D3913A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Glow Plug Connector End View (Standard)

Courtesy of CHRYSLER

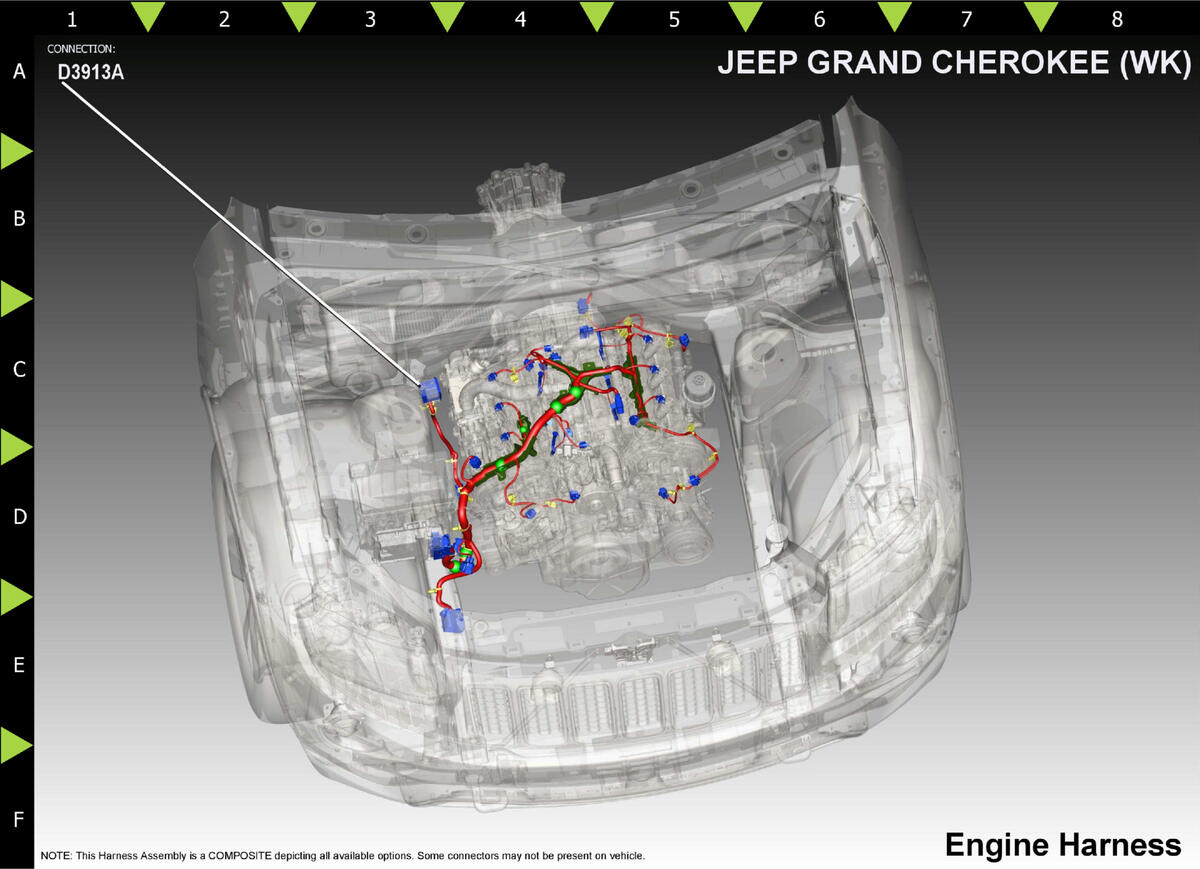

Fig 2: Module-Glow Plug Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A202

RD/WH

1.5

FUSED B(+)

N/A

A203

1.5

FUSED B(+)

N/A

A204

RD/YE

1.5

FUSED B(+)

N/A

A208

RD/OG

1.5

FUSED B(+)

N/A

A211

RD/BU

1.5

FUSED B(+)

N/A

F343

BN/YE

1.5

ASD RELAY OUTPUT

N/A

Z909

2.5

GROUND

N/A

A216

RD/GN

1.5

FUSED B(+)

N/A

D509

WH/OG

0.50

LIN BUS

N/A

A29

RD/GY

5.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
