SP2139 (Standard) Connector End View (SP2139)

Harness-Family: Liftgate

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SP2139

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sp2139 Connector End View (Standard)

Courtesy of CHRYSLER

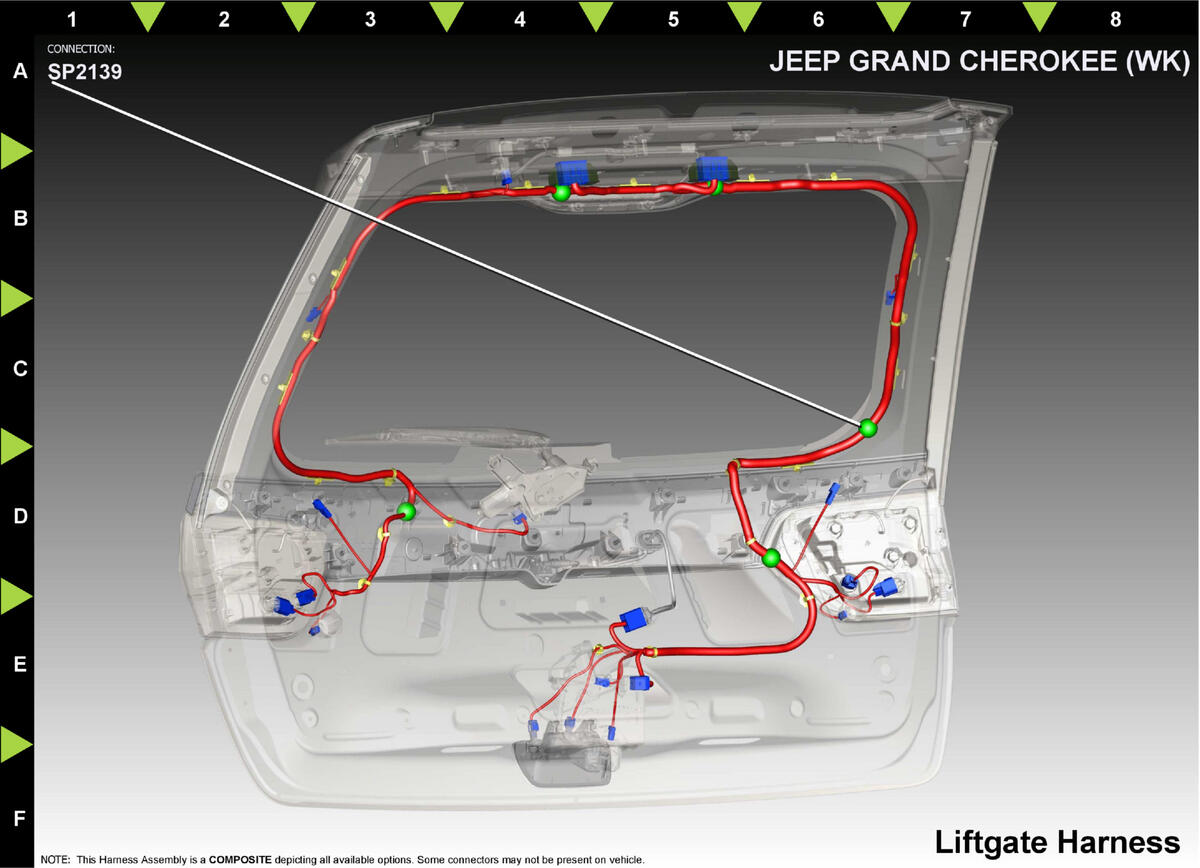

Fig 2: Sp2139 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q901

OG/VT

0.35

LOGIC GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
