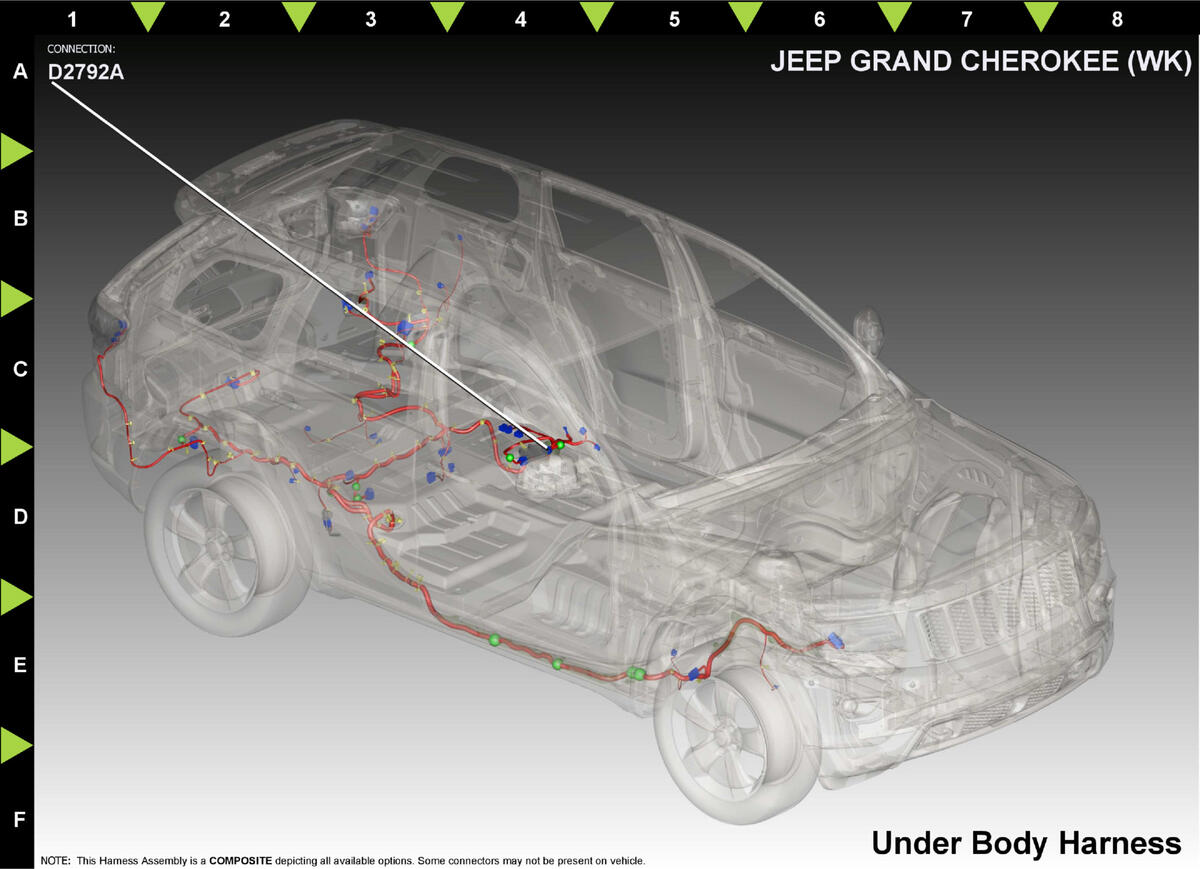

Module-Fuel Pump Control (Standard) Connector End View (D2792A)
Harness-Family: Under_Body
Color: GRAY
Gender: FEMALE
Part Number: 13669205
Part Description: Not Available
Connector No: D2792A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A | N15 | VT/RD | 3.0 | FPCM PWM CONTROL | N/A | ||
| B | N11 | DB/BG | 0.50 | FPCM PWM CONTROL | N/A | ||
| D | N13 | DB/OG | 3.0 | FUEL PUMP PWM CONTROL | N/A | ||
| E | Z917 | BK | 3.0 | GROUND | N/A | ||
| F | N12 | DB/GN | 0.50 | FPCM PWM FEEDBACK | N/A | ||
| G | Z31 | BK | 0.50 | GROUND | N/A | ||
| H | N14 | VT/BU | 3.0 | FUEL PUMP RETURN | N/A | ||
|
|||||||
