Module-Body Control C5/E (Standard) Connector End View (D3806E)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13850164_13850160_13850161

Part Description: Not Available

Connector No: D3806E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C5/e Connector End View (Standard)

Courtesy of CHRYSLER

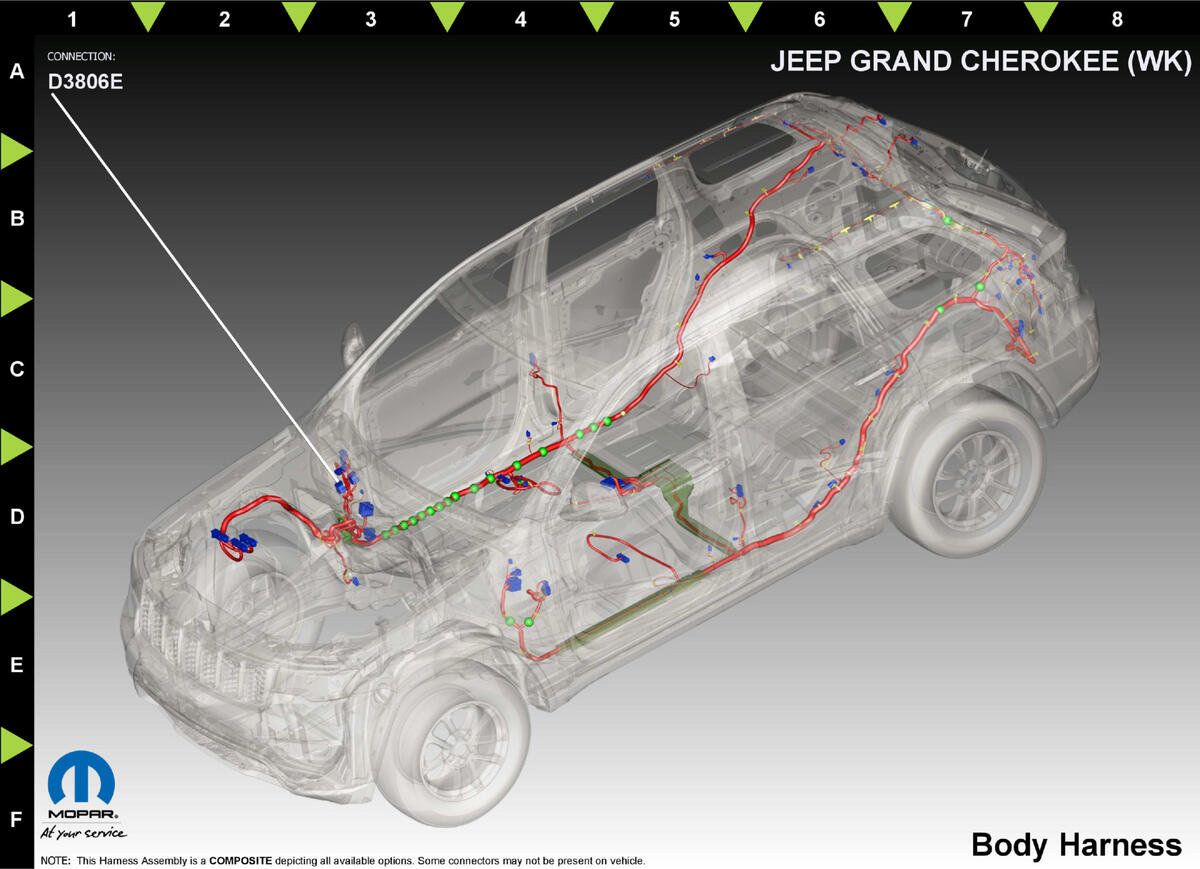

Fig 2: Module-Body Control C5/e Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L16

WH/VT

0.50

RIGHT BACKUP LAMP DRIVER

N/A

L54

WH/GN

0.50

RIGHT STOP/TURN LAMP DRIVER

N/A

L63

WH/DG

0.50

LEFT BACKUP LAMP DRIVER (EXCEPT EXPORT)/LEFT REAR TURN LAMP DRIVER (EXPORT)

N/A

L72

WH/OG

0.50

RIGHT REAR PARK LAMP DRIVER

N/A

G76

VT/YE

0.50

RIGHT REAR DOOR AJAR SWITCH SENSE

N/A

P305

GN/BU

0.50

ACCESSORY DELAY RELAY CONTROL

N/A

L311

0.50

LEFT HEADLAMP RELAY CONTROL

N/A

P307

GN/GY

0.50

ACCESSORY DELAY RELAY CONTROL

N/A

B25

DG/WH

0.50

PARK BRAKE SWITCH SENSE

N/A

DB/GY

0.50

FUEL LEVEL SIGNAL 2

N/A

G109

0.50

FUEL LEVEL SENSE RETURN

N/A

DB/WH

0.50

FUEL LEVEL SENSOR SIGNAL

N/A

WH/DB

0.50

LICENSE PLATE LAMP DRIVER

N/A

L656

WH/DG

0.50

RIGHT REAR TURN SIGNAL CONTROL

N/A

L658

WH/BN

0.50

TRAILER TOW BACKUP LAMP RELAY CONTROL

N/A

L657

WH/GN

0.50

TRAILER TOW TAIL LAMP RELAY CTRL

N/A

D45

0.35

CAN C (+)

N/A

D46

0.35

CAN C (-)

N/A

F20

PK/WH

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

G755

VT/BG

0.50

DRIVER DOOR SECONDARY AJAR SWITCH SENSE

N/A

K619

BN/OG

0.50

IGNITION RUN CONTROL OUTPUT

N/A

L310

BG/WH

0.50

RIGHT HEADLAMP RELAY CONTROL

N/A

L898

WH/DG

0.50

FOG RR LAMP FEED 2

N/A

P237

DG/BG

0.50

SECONDARY UNLOCK DRIVER

N/A

P235

GN/BG

0.50

SECONDARY LOCK DRIVER

N/A

D403

OG/DB

0.50

LIN BUS

N/A

W17

0.50

REAR WIPER PARK SWITCH SENSE

N/A

W12

BN/OG

0.50

REAR WIPER RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
