Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1456985-3

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)
GCWD1016843Courtesy of CHRYSLER

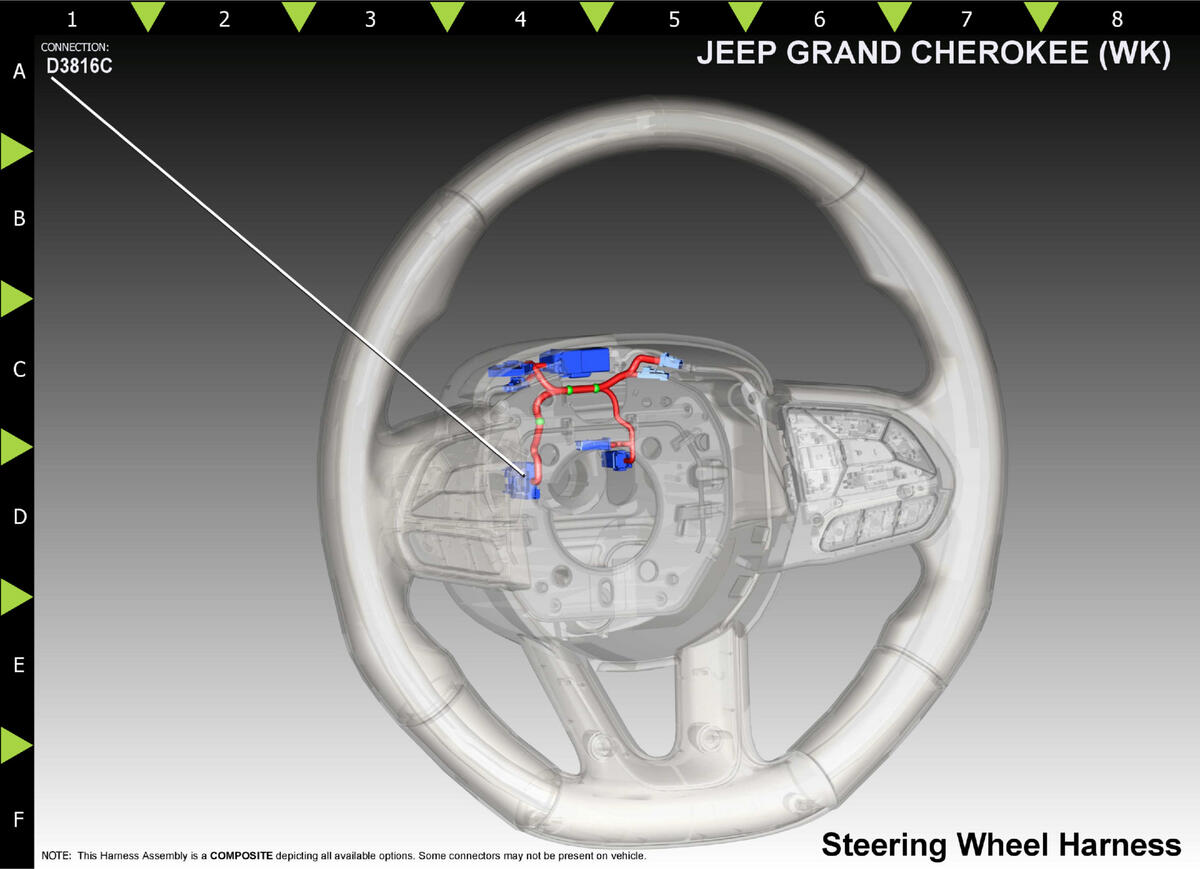

Fig 2: Module-Steering Column Control C3 Component Location (Standard)
GCWD1254565Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A92 RD 0.22 FUSED B(+) EXCEPT SRT
2 T830 GN 0.22 PADDLE SHIFT SWITCH SIGNAL EXCEPT SRT
3 X3 BU 0.22 HORN SWITCH SENSE EXCEPT SRT
4 D592 BK 0.22 LIN BUS EXCEPT SRT
5 Z92 BU 0.22 GROUND EXCEPT SRT
6 D594 BK 0.22 LIN BUS EXCEPT SRT
(1) Pins not listed are not used for this connector
