Front Switch Module
- Disconnect and isolate the battery negative cable.

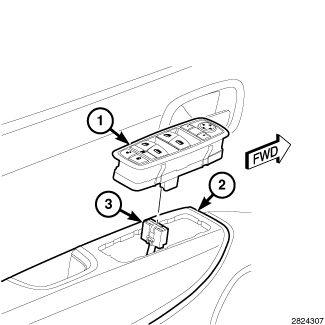

- Using a trim stick or another suitable wide flat-bladed tool, pry the bezel of the front door switch module (1) up and away from the front door trim panel arm rest (2) far enough to disengage the four spring steel retainers of the switch from the arm rest opening.
- Pull the switch module away from the mounting hold of the arm rest far enough to access and disconnect the door wire harness connector (3) from the switch connector receptacle.
- Remove the switch module from the vehicle.
