Module, Glow Plug, 3.0L Diesel: Installation

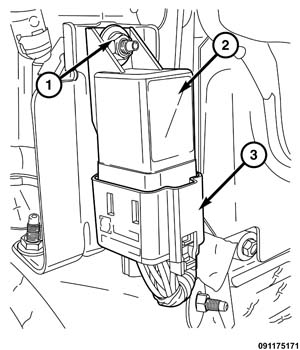

GC0158404Courtesy of CHRYSLER GROUP, LLC
  1. Install the glow plug module (2) and securely tighten the retaining nut (1).
  2. Connect the Glow Plug Module wire harness connector (3).
  3. Connect negative battery cable.
