Module, Fuel Pump Control: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the fuel pump control modules in the mounting bracket.

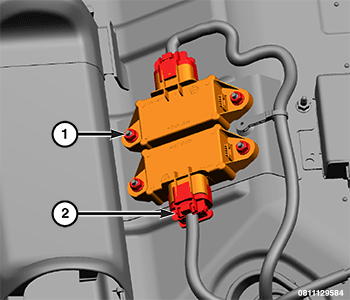

2. Install the fuel pump control module mounting nuts (1) and securely tighten.
3. Connect the fuel pump control module wire harness connectors (2) to the module.
4. Install the rear carpet assembly. Refer to CARPET, FLOOR, INSTALLATION .
5. Install the rear seat. Refer to SEAT, FRONT, INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
