Module, Electronic Shift (ESM): Installation

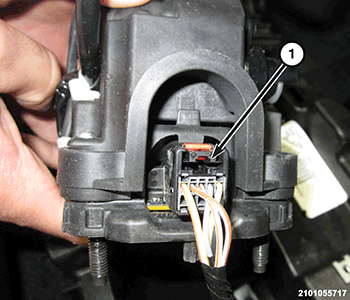

GC0170239Courtesy of CHRYSLER GROUP, LLC
  1. Position the shifter assembly in place and connect the shifter wire harness connector (1).

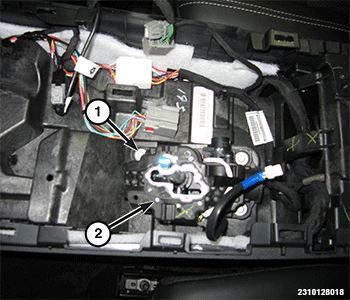

    GC0184050Courtesy of CHRYSLER GROUP, LLC
  2. Install the shifter bolts (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the shifter bezel. Refer to BEZEL, SHIFTER, INSTALLATION .
  4. Connect the negative battery cable.
