Module, Electronic Limited Slip Differential (ELSD): Installation

Courtesy of CHRYSLER GROUP, LLC

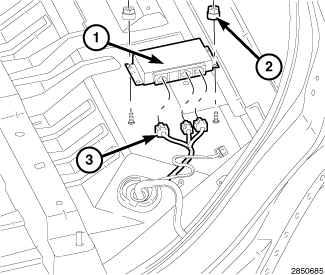

1. Install the module in the vehicle.
2. Secure the module mounting nuts (2) and tighten to 7 N.m (5 ft. lbs.).
3. Connect the body wire harness connectors (3) to the module connector receptacle.
4. Install carpet in original position.
5. Install left rear seat. Refer to SEAT, FRONT, REMOVAL .
6. Connect the negative battery cable, for battery location and cable connection procedure. Refer to CABLES, BATTERY, INSTALLATION .
7. Perform the Electronic Limited Slip Differential (ELSD) verification test. Refer to ELSD VERIFICATION TEST .
