Module, Blind Spot (BSM): Installation

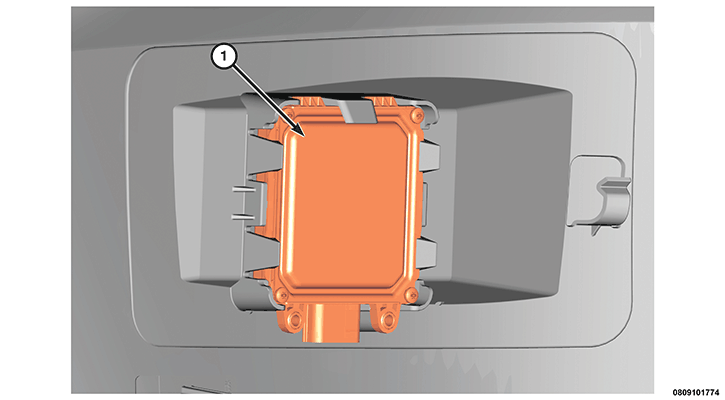

GC0173691Courtesy of CHRYSLER GROUP, LLC
  1. Position the blind spot monitor sensor (1) to the mounting bracket on the rear bumper fascia.
    NOTE:

    Be sure to install the blind spot sensor in the direction shown in illustration, otherwise there will blind spot sensor faults.

  2. Insert tabs opposite the connector and index the left side into the clips with pressure on the fastener. Apply pressure over the fasteners on the right side to seat in the other clips.

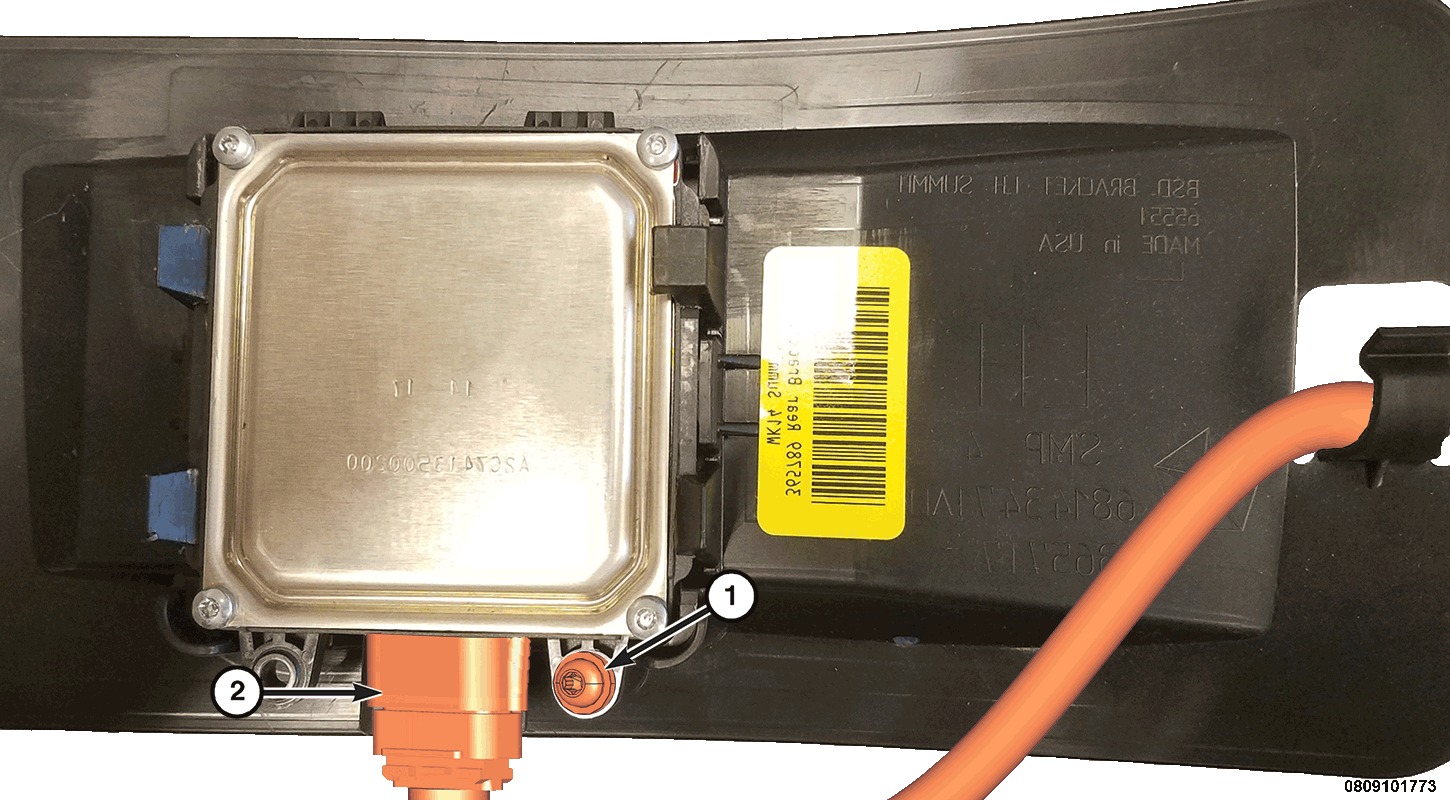

    GC0173648Courtesy of CHRYSLER GROUP, LLC
  3. Insert the screw into the right screw boss (1).
  4. Connect the rear bumper fascia wire harness connector (2) to the connector receptacle.
  5. Install the rear bumper fascia onto the vehicle. Refer to FASCIA, REAR, INSTALLATION .
  6. Connect the negative cable to the battery.
