Torque Box CROSSMEMBER

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the front belly pan, and the transmission belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

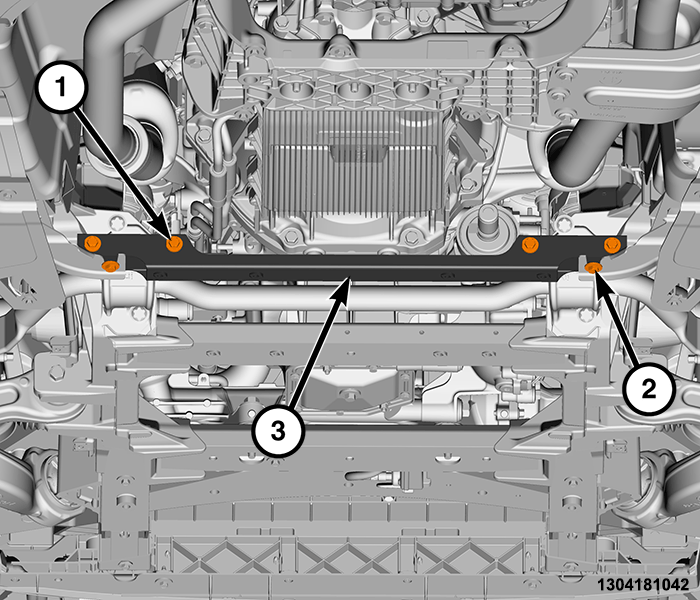

Courtesy of CHRYSLER GROUP, LLC

1 - Stabilizer Bracket Bolts

2 - Lower Torque Box Bolts

3 - Torque Box Crossmember

Remove the bolts attaching the torque box crossmember to the stabilizer bar brackets.
Remove the lower torque box bolts.

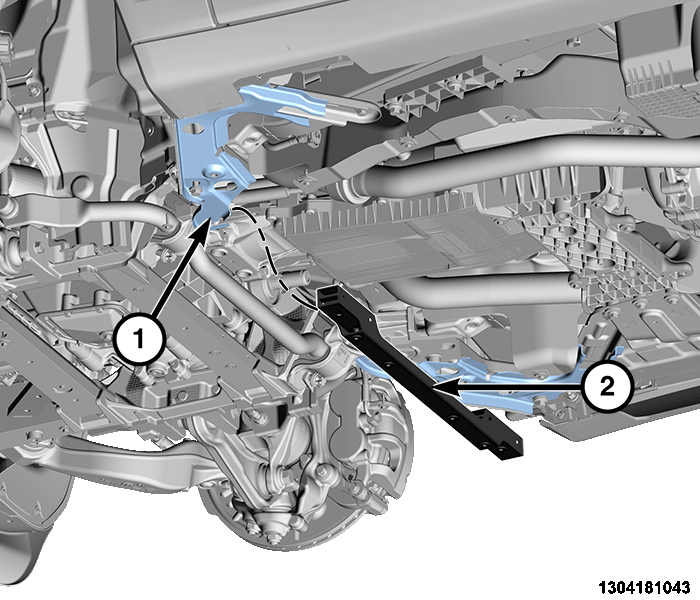

Courtesy of CHRYSLER GROUP, LLC

1 - Brackets

2 - Torque Box Crossmember
Remove the torque box crossmember from above the brackets.

Courtesy of CHRYSLER GROUP, LLC

1 - Brackets

2 - Torque Box Crossmember

INSTALLATION

Install the torque box crossmember on the vehicle above the brackets.

Courtesy of CHRYSLER GROUP, LLC

1 - Stabilizer Bracket Bolts

2 - Lower Torque Box Bolts

3 - Torque Box Crossmember

Install the bolts attaching the torque box crossmember to the stabilizer bar brackets and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the lower torque box bolts and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the front belly pan, and the transmission belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
