3.0L Diesel

GC0172149Courtesy of CHRYSLER GROUP, LLC
  1. Install the coolant temperature sensor (1) into water pump housing and torque to 11 N.m (8 ft. lbs.).

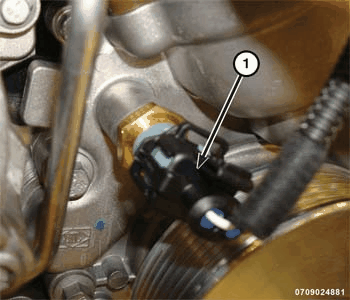

    GC0158079Courtesy of CHRYSLER GROUP, LLC
  2. Connect the coolant temperature sensor wire harness connector (1).
  3. Fill the cooling system. Refer to STANDARD PROCEDURE .
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  4. Install the engine cover (1).
  5. Connect the negative battery cable.
