Sensor, EGR Temperature: Installation

GC0157440Courtesy of CHRYSLER GROUP, LLC
  1. Clean the EGR temperature sensor opening in the EGR valve.
  2. Install the EGR temperature sensor (1) and tighten to 25 N.m (18 ft. lbs.).
  3. Connect EGR temperature sensor wire harness connector (2).

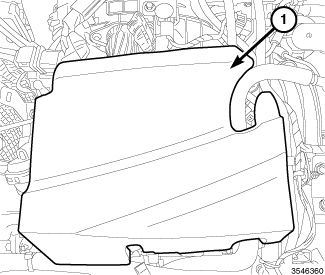

    GC0152125Courtesy of CHRYSLER GROUP, LLC
  4. Install the fuel injector silencer (1).
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  5. Install the engine cover (1).
  6. Connect the negative battery cable.
