Hub And Bearing: Installation: 4X2

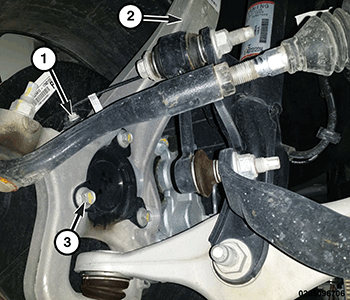

GC0173565Courtesy of CHRYSLER GROUP, LLC
  1. Position the hub bearing into the knuckle (2), install the 3 bolts (3) and tighten to 105 N.m (78 ft. lbs.).
  2. Install the wheel speed sensor into the knuckle (2), install the sensor mounting bolt (1) and tighten to 11 N.m (95 in. lbs.).
  3. Install the brake rotor. Refer to ROTOR, BRAKE, INSTALLATION .
  4. Install the wheel and tire assembly. Refer to STANDARD PROCEDURE .
  5. Remove the support and lower the vehicle.
