Section 32 (Starting System (Service Information)): Starter: Installation: 3.6L
WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the starter (3) inside the transmission.
- Install the starter mounting bolts (4) and tighten to the proper specification. Refer to TORQUE SPECIFICATION .

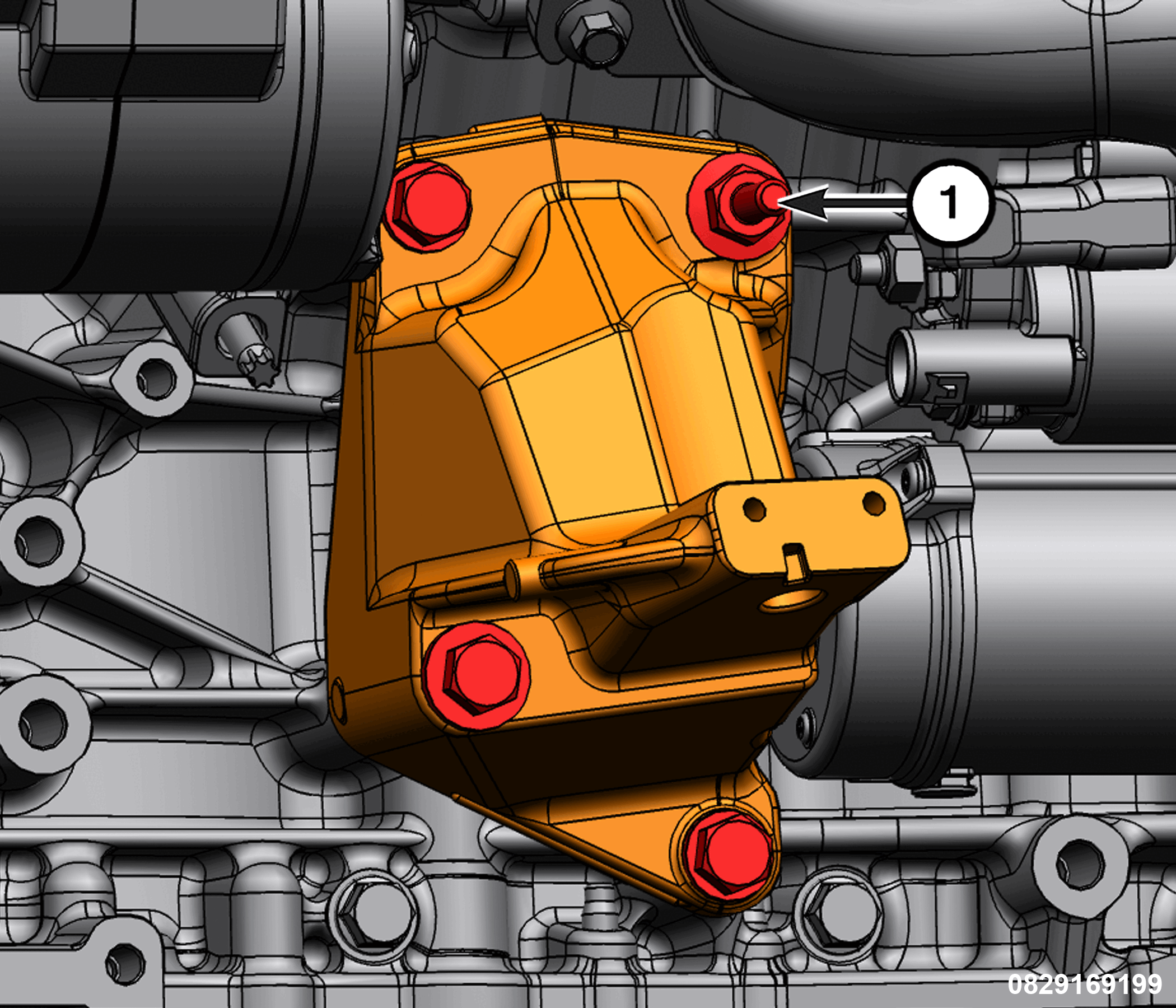

- If removed position the engine mount bracket to the engine and tighten the fasteners (1) to the proper specification. Refer to TORQUE SPECIFICATIONS
.

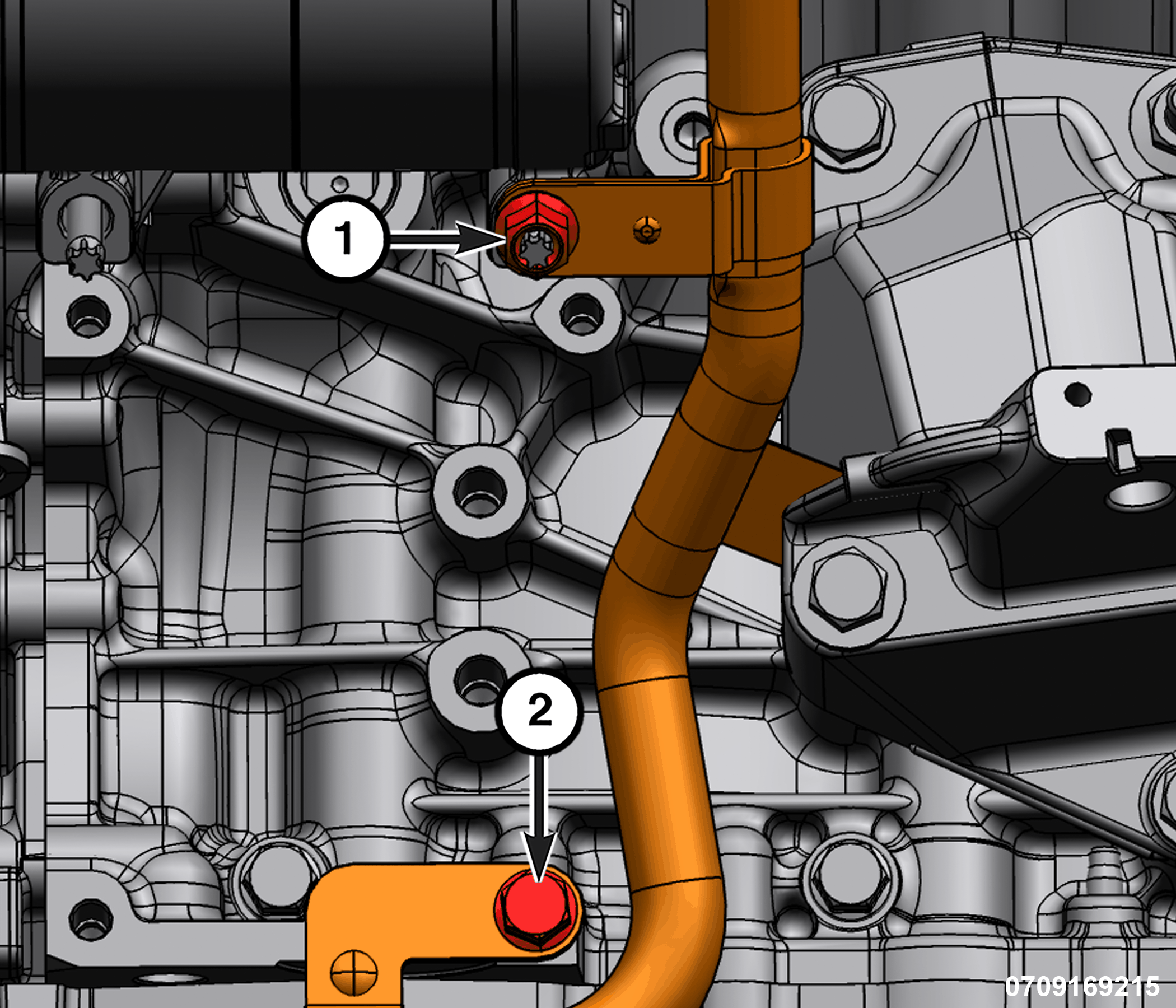

- Install the fasteners (1 and 2) that secure the coolant pipe and tighten securely.

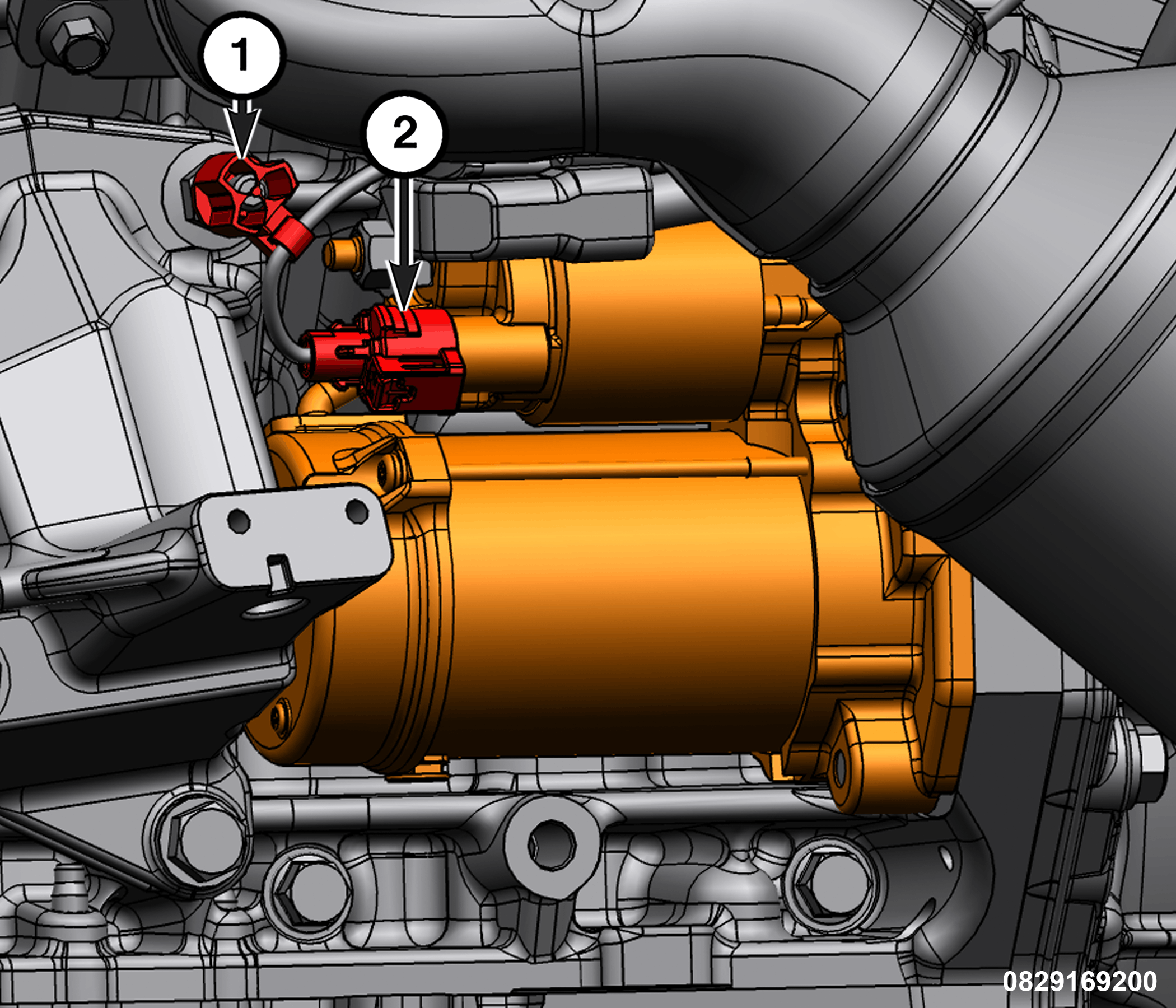

- Connect the starter solenoid electrical connector (2) and secure the harness clip (1) to the engine mount stud.
- Position the left isolator onto the frame rails and tighten the fasteners to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Lower the engine onto the isolators and remove the jack.
- Install the nut (1) onto both engine mounts and tighten them to the proper specification. Refer to TORQUE SPECIFICATIONS
.
- Install the bolts (1) for the engine mount heat shield on both the left and right engine mounts and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the front skid plate. Refer to INSTALLATION .
- Raise and support the vehicle. Refer to STANDARD PROCEDURE - JACKING AND HOISTING LIFT POINTS .
- Install the silencer cowl extension. Refer to INSTALLATION .
- Install the air cleaner body. Refer to INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
