Removal And Installation: 1.4L: Removal

NOTE:

LHD shown in illustration, RHD similar.

GC0164989Courtesy of CHRYSLER GROUP, LLC

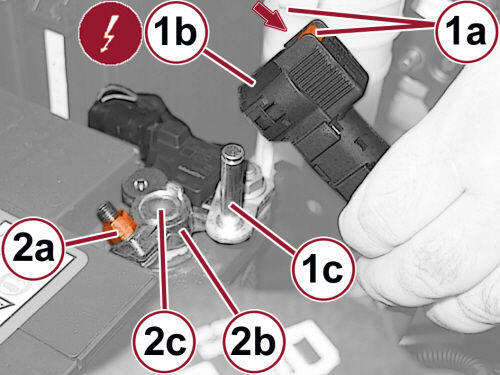

  1. Press the release (1a) and disconnect the cable (1b) from the negative battery pole (1c).
  2. Loosen the terminal nut (2a) and disconnect the terminal (2b) complete with the intelligent battery sensor, from the battery (2c). Isolate the terminal (2b).
    GC0164083Courtesy of CHRYSLER GROUP, LLC

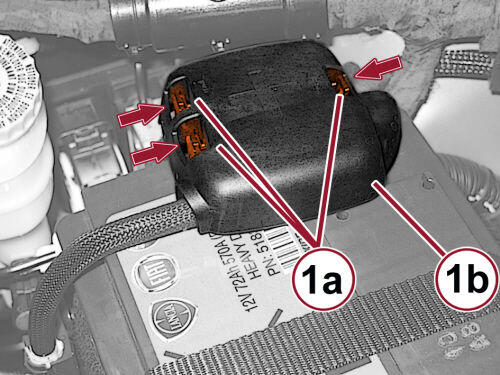

  3. Press retainers (1a) and disengage the cover (1b) from the power supply box from the seat cover (1a).
    GC0164107Courtesy of CHRYSLER GROUP, LLC

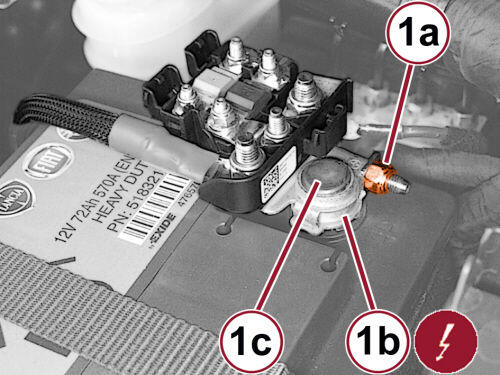

  4. Loosen the nut (1a) and disconnect the terminal (1b) with the power supply box from the positive terminal (1c) of the battery. Isolate the terminal (1b).
    GC0163357Courtesy of CHRYSLER GROUP, LLC

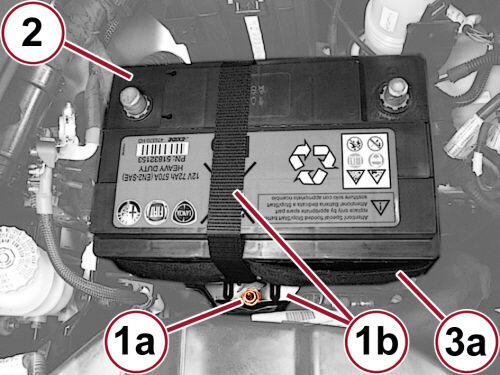

  5. Remove the nut (1a) and move the battery retaining belt (1b) bracket.
  6. Remove the battery.
  7. check that the battery is not damaged.
