Switch-Memory Set (Standard) Connector End View (D2261A)

Harness-Family: Door_Driver_2

Color: BLACK

Gender: FEMALE

Part Number: 90156-0144

Part Description: Not Available

Connector No: D2261A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Memory Set Connector End View (Standard)

Courtesy of CHRYSLER

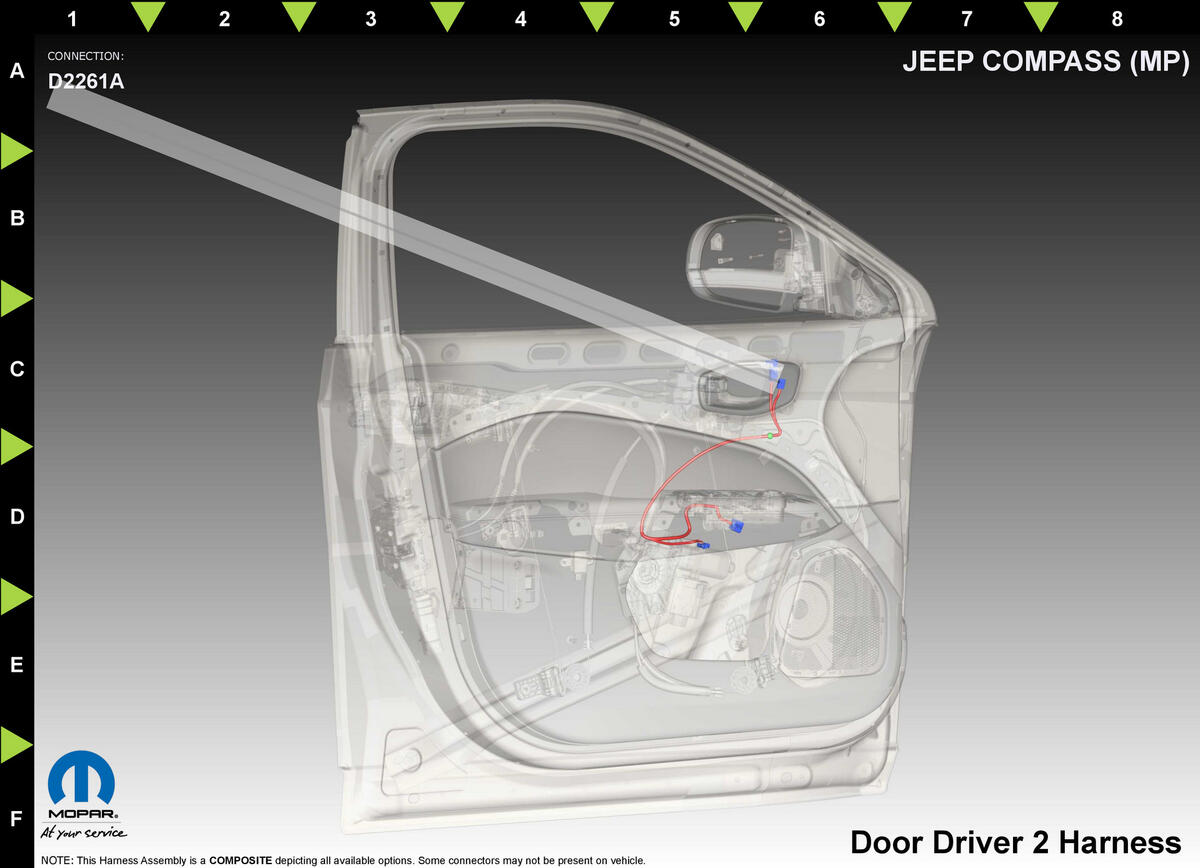

Fig 2: Switch-Memory Set Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G200

VT/BN

0.50

MEMORY SELECT SWITCH MUX

N/A

G920

VT/YE

0.50

MEMORY SELECT SWITCH RETURN

N/A

E12

OG/GY

0.50

PANEL LAMPS DRIVER

N/A

Z931

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
