Module-Terrain Switch Bank (Standard) Connector End View (D2297A)

Harness-Family: Jumper_Bezel

Color: GREEN

Gender: FEMALE

Part Number: 638394-4

Part Description: Not Available

Connector No: D2297A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

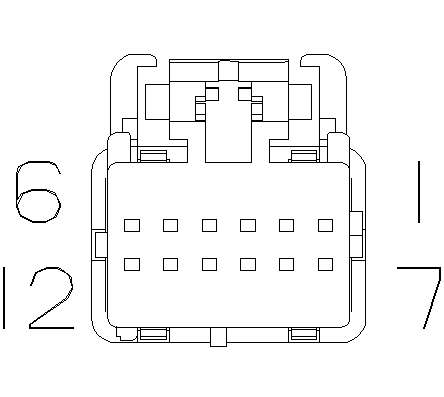

Fig 1: Module-Terrain Switch Bank Connector End View (Standard)

Courtesy of CHRYSLER

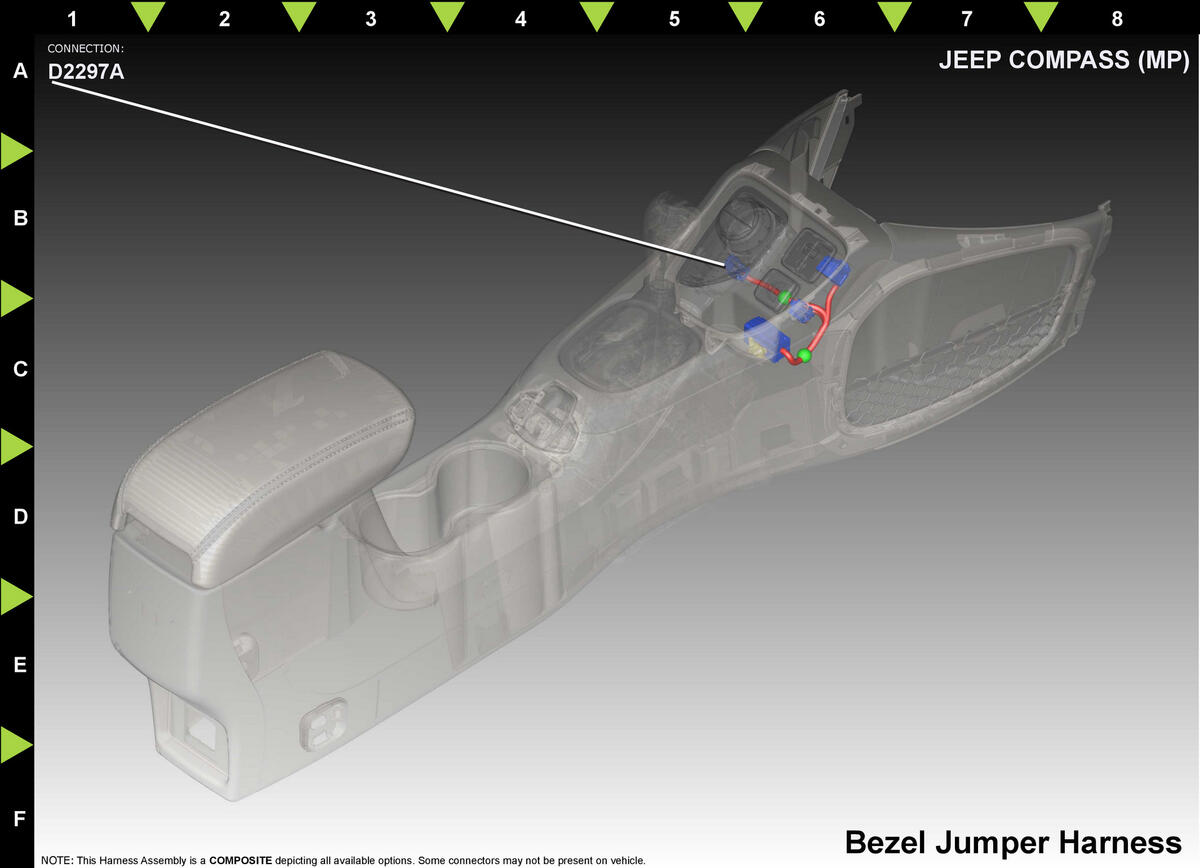

Fig 2: Module-Terrain Switch Bank Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D402

OG/VT

0.35

LIN BUS CBC 2

N/A

Z930

0.35

GROUND

N/A

F944

PK/GN

0.35

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
