Module-Steering Column Control C4 (Standard) Connector End View (D3816D)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 33401470

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C4 Connector End View (Standard)
GCWD1239634Courtesy of CHRYSLER

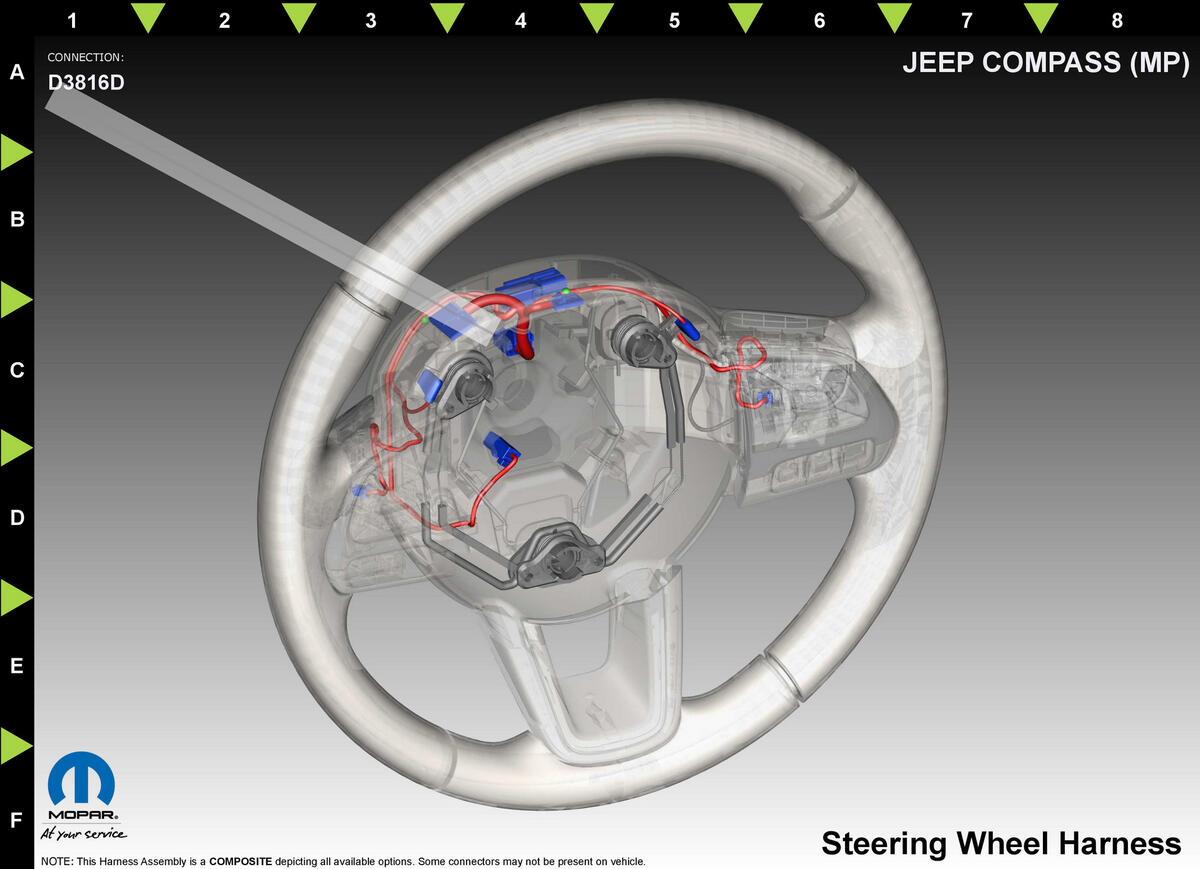

Fig 2: Module-Steering Column Control C4 Component Location (Standard)
GCWD1257276Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z935 BK 0.35 GROUND N/A
2 X3 BN 0.35 HORN SWITCH SENSE N/A
3 A911 RD 0.35 FUSED B(+) N/A
9 D404 WH 0.35 LIN BUS N/A
10 D402 YE 0.35 LIN BUS CBC 2 N/A
(1) Pins not listed are not used for this connector
