Module-Radio-Freq Hub C1 (Standard) Connector End View (D2665A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 2272010-2

Part Description: Not Available

Connector No: D2665A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Radio-Freq Hub C1 Connector End View (Standard)

Courtesy of CHRYSLER

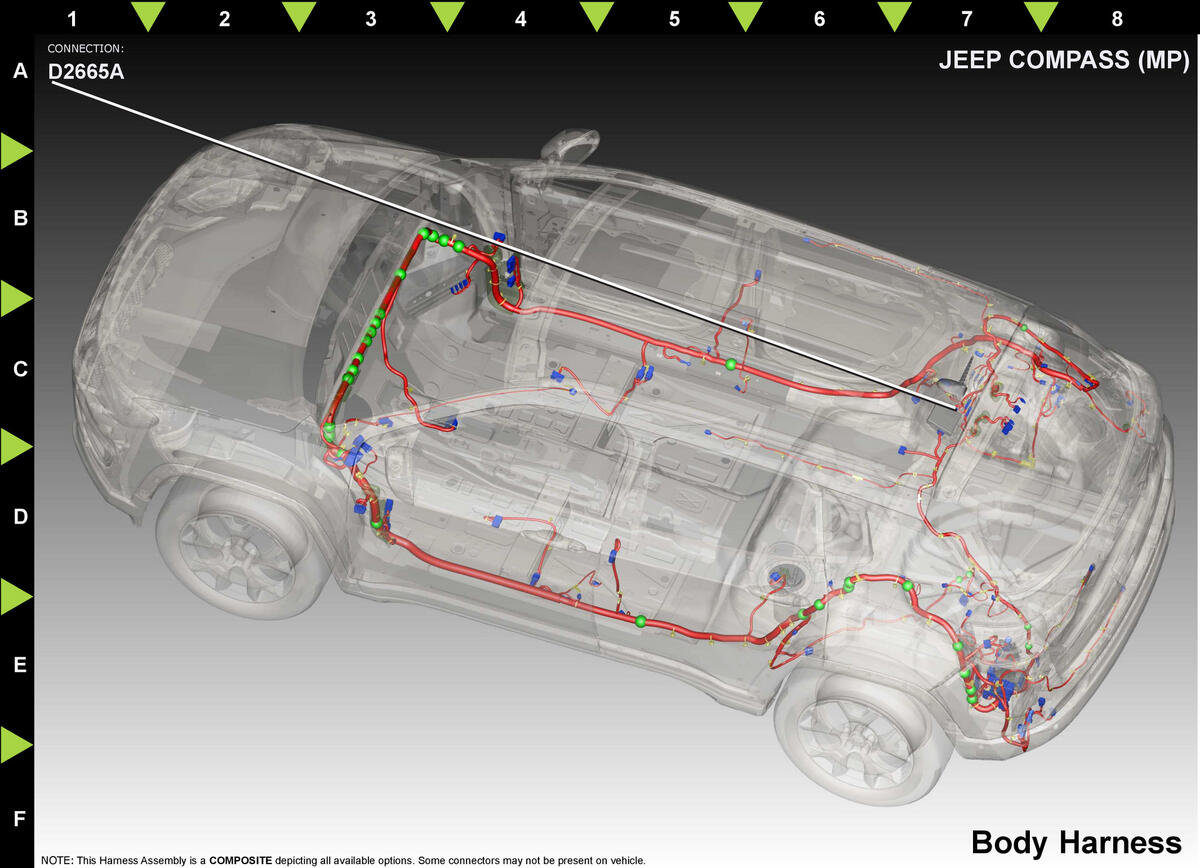

Fig 2: Module-Radio-Freq Hub C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F20

PK/WH

0.50

IGNITION RUN/START CONTROL OUTPUT

N/A

B135

DG/GN

0.35

BRAKE SIGNAL 1

N/A

Z942

0.35

GROUND

N/A

T12

DG/YE

0.50

CLUTCH INTERLOCK SIGNAL

N/A

A938

0.35

FUSED B(+)

N/A

G20

VT/BN

0.35

IGNITION SWITCH SENSE

N/A

D122

WH/GN

0.35

SECURITY K LINE COMMUNICATION

N/A

D40

0.50

CAN C (-)

N/A

D39

0.50

CAN C (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
