Module-Powertrain Control C2 (2.0L) Connector End View (D3837B)

Harness-Family: Engine_Diesel_20

Color: BLACK

Gender: FEMALE

Part Number: 1/11902/07

Part Description: Not Available

Connector No: D3837B

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C2 Connector End View (2.0L)
GCWD1012981Courtesy of CHRYSLER

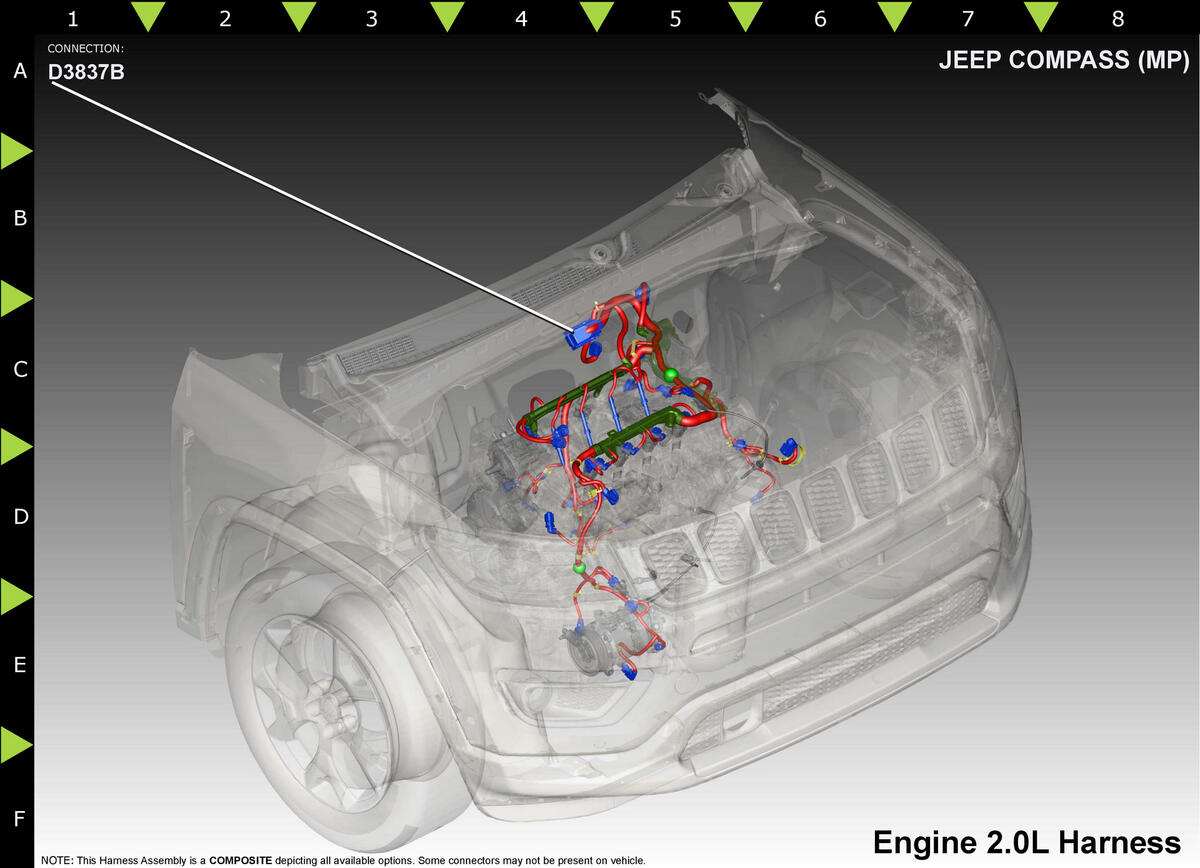

Fig 2: Module-Powertrain Control C2 Component Location (2.0L)
GCWD1257304Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
3 K635 VT/DB 0.75 TURBOCHARGER ACTUATOR (+) N/A
12 K385 VT/YE 0.50 SENSOR GROUND N/A
13 K384 GN/WH 0.50 EGT SIGNAL N/A
25 K636 BN/BK 0.75 TURBOCHARGER ACTUATOR (-) N/A
29 K351 GN/BK 0.50 5V ACTUATOR SWIRL END POSITION N/A
30 G60 GY 0.50 OIL PRESS SENSE/SW SIG 2 N/A
33 K945 VT/WH 0.75 ACTUATOR SWIRL END POSITION RTN N/A
38 K668 WH/OG 0.50 5 VOLT SUPPLY N/A
39 K551 BN/YE 0.50 5 VOLT SUPPLY N/A
46 K79 RD/VT 0.75 O2 1/1 HEATER CONTROL N/A
50 G6 GY/DB 0.50 EOP SIGNAL N/A
55 K914 OG/BK 0.50 SENSOR GROUND N/A
56 K352 GN 0.50 EGT SIGNAL N/A
61 K48 WH/GN 0.50 AIR TEMP SENSOR SIGNAL N/A
74 K900 OG 0.50 SENSOR GROUND N/A
75 K372 VT 0.50 EGT SIGNAL N/A
76 K552 BK/OG 0.50 SENSOR GROUND N/A
77 K553 BN/OG 0.50 TURBO POSITION SIGNAL N/A
83 K41 RD/YE 0.50 O2 1/1 SIGNAL N/A
84 K103 BK/WH 0.50 O2 1/1 PUMP CELL CURRENT TRIM N/A
90 G62 WH/GY 0.75 OIL PRESSURE SOL CONTROL N/A
91 N117 GY/BN 0.50 INTAKE SWIRL SERVO MOTOR CONTROL N/A
95 K690 BN/VT 0.50 COMBO PRESS AND TEMP SNSR RTN N/A
96 K37 WH/RD 0.50 BOOST PRESSURE SIGNAL N/A
104 K902 RD/BK 0.50 O2 RETURN (UPSTREAM) N/A
105 K89 RD/WH 0.50 O2 1/1 POSITIVE CURRENT CONTROL N/A
(1) Pins not listed are not used for this connector
