Module-Powertrain Control C2 (1.4L) Connector End View (D3821B)

Harness-Family: ENG_1.4L

Color: BLACK

Gender: FEMALE

Part Number: 1/08096/97

Part Description: Not Available

Connector No: D3821B

Option: 1.4L

Repair Kit Part Number: Not Available

Cavity Count: null

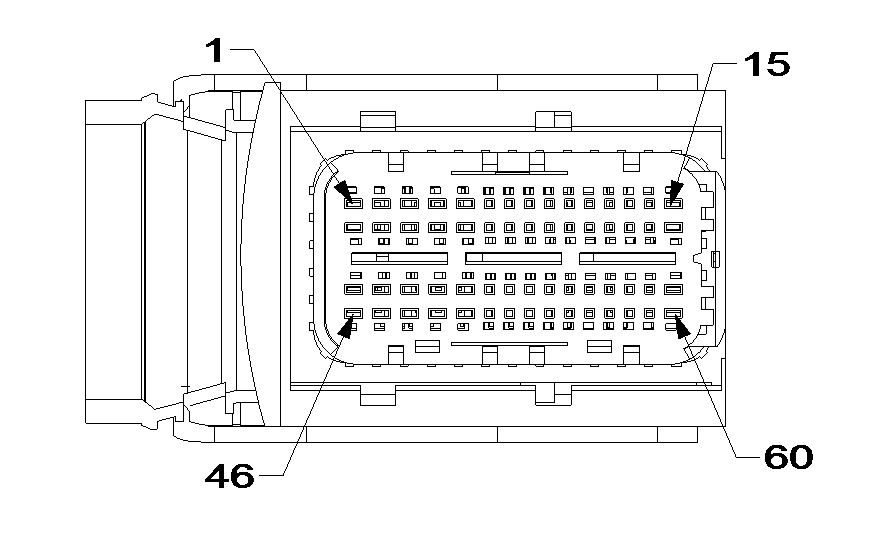

Fig 1: Module-Powertrain Control C2 Connector End View (1.4L)
GCWD1084155Courtesy of CHRYSLER

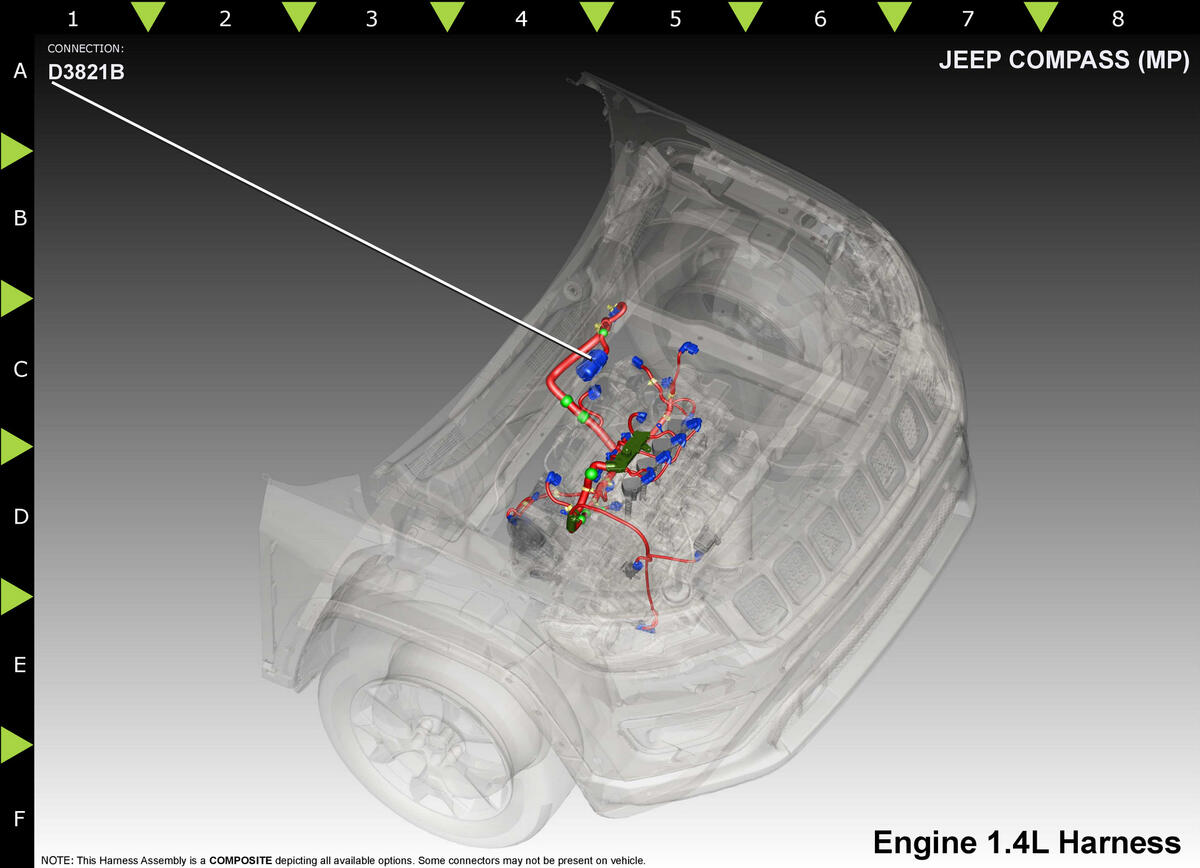

Fig 2: Module-Powertrain Control C2 Component Location (1.4L)
GCWD1257123Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K18 WH/DB 0.75 COIL CONTROL 3 N/A
2 K15 WH/BN 0.75 COIL CONTROL 4 N/A
3 K11 DB/BK 0.75 INJECTOR CONTROL 1 N/A
4 K12 WH/GY 0.75 INJECTOR CONTROL 2 N/A
6 F855 WH/BK 0.50 5 VOLT SUPPLY N/A
7 F856 WH/OG 0.50 5 VOLT SUPPLY N/A
10 K42 VT 0.50 KS 1 SIGNAL N/A
11 K942 DB 0.50 KS 1 RETURN N/A
14 K925 GY/BK 0.50 CKP GROUND N/A
15 K137 GY/WH 0.50 WASTEGATE SOL CONTROL N/A
16 K17 YE/RD 0.75 COIL CONTROL 2 N/A
17 K19 RD/GN .75 COIL CONTROL 1 N/A
18 K14 BK/RD 0.75 INJECTOR CONTROL 4 N/A
19 K13 BN/BK 0.75 INJECTOR CONTROL 3 N/A
24 K900 BN/VT 0.50 SENSOR GROUND N/A
25 K922 GY/DB 0.50 TP SENSOR RETURN N/A
27 K441 OG 0.50 CMP SENSOR SIGNAL N/A
28 K147 BK 0.50 KNOCK SENSOR 1 SHIELD CIRCUIT N/A
29 K24 WH/GN 0.50 CKP SIGNAL N/A
31 N35 BK 1.5 VVA SOLENOID 2 RETURN N/A
32 N33 WH 1.5 VVA SOLENOID 1 RETURN N/A
33 N39 YE 1.5 VVA SOLENOID 4 RETURN N/A
34 N37 DB 1.5 VVA SOLENOID 3 RETURN N/A
39 K2 GN 0.50 ECT SIGNAL N/A
40 G24 YE 0.50 EOT SIGNAL N/A
43 K22 YE/DB 0.50 TP 1 SIGNAL N/A
44 G6 GY/YE 0.50 EOP SIGNAL N/A
45 K448 RD/VT 0.75 ETC MOTOR (-) N/A
46 N34 VT/YE 1.5 VVA SOLENOID 2 SIGNAL N/A
47 N32 WH/RD 1.5 VVA SOLENOID 1 SIGNAL N/A
48 N38 GY 1.5 VVA SOLENOID 4 SIGNAL N/A
49 N36 BN 1.5 VVA SOLENOID 3 SIGNAL N/A
52 K150 BK/VT 0.50 TURBOCHARGER SURGE VALVE CONTROL N/A
53 K52 YE/BK 0.75 EVAP PURGE CONTROL N/A
54 F342 DB/GN 0.50 FUSED ASD RELAY OUTPUT N/A
55 K21 WH/GN 0.50 IAT SIGNAL N/A
57 K1 WH/RD 0.50 MAP SIGNAL N/A
58 K37 WH/YE 0.50 BOOST PRESSURE SIGNAL N/A
59 K122 OG/BK 0.50 TP 2 SIGNAL N/A
60 K447 WH/VT 0.75 ETC MOTOR (+) N/A
(1) Pins not listed are not used for this connector
