Module-Powertrain Control C1 (2.4L) Connector End View (D3821A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 2098491-1_2098863-1

Part Description: Not Available

Connector No: D3821A

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count: null

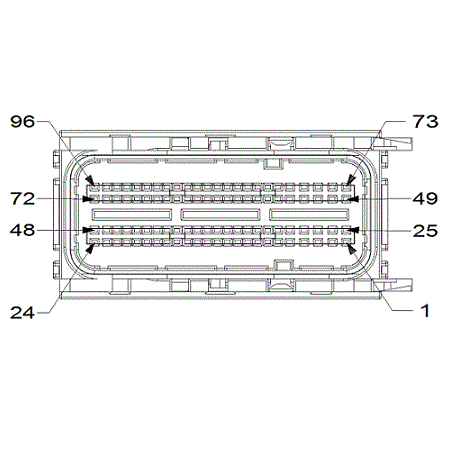

Fig 1: Module-Powertrain Control C1 Connector End View (2.4L)
GCWD1013914Courtesy of CHRYSLER

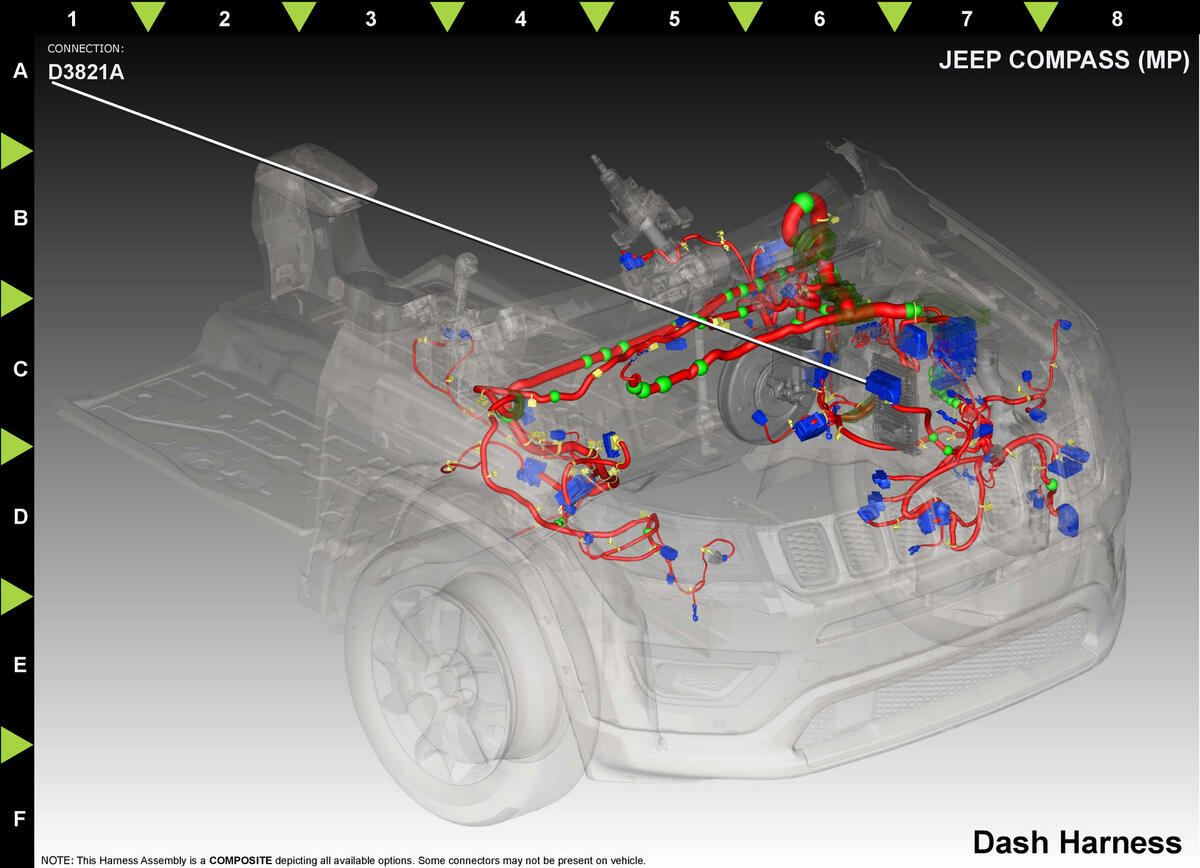

Fig 2: Module-Powertrain Control C1 Component Location (2.4L)
GCWD1257184Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
4 K52 DB/WH 0.50 EVAP PURGE CONTROL N/A
6 T762 DG/YE 0.75 PCR RELAY CONTROL N/A
10 K804 BN/GN 0.50 STOP START NEUTRAL SW SIG N/A
17 B135 DG/GN 0.35 BRAKE SIGNAL 1 N/A
18 T22 YE/VT 0.35 BACKUP LAMP SWITCH SIGNAL N/A
23 F942 PK/VT 0.50 FUSED IGNITION RUN N/A
24 K854 VT/BN 0.50 5 VOLT SUPPLY N/A
25 K175 BN/BU 0.75 RAD FAN CONTROL N/A
26 C13 BU/OG 0.75 A/C CLUTCH CONTROL N/A
27 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
29 K173 BN/VT 0.50 LOW RAD FAN RELAY CONTROL N/A
33 D2 YE 0.50 CAN C (-) N/A
40 K165 DG/WH 0.35 CLUTCH POSITION SIGNAL N/A
41 N7 DB/OG 0.50 FUEL TANK PRESSURE SIGNAL N/A
43 T753 DG/YE 0.75 IGNITION CRANK SENSE N/A
47 K859 BN/DB 0.35 5 VOLT SUPPLY N/A
48 K852 GY/BU 0.50 5 VOLT SUPPLY N/A
51 Z909 BK 1.5 GROUND N/A
52 Z909 BK 1.5 GROUND N/A
53 Z909 BK 1.5 GROUND N/A
57 D1 BG/WH 0.50 CAN C (+) N/A
63 K806 DB/BN 0.75 STOP START HOOD AJAR SW SIG N/A
64 C18 BU/BN 0.50 A/C PRESSURE SIGNAL N/A
67 K400 BN/VT 0.50 APP SENSOR GROUND 2 N/A
68 K167 BN/YE 0.50 APP SENSOR GROUND 1 N/A
70 K917 BN/BG 0.35 SENSOR GROUND N/A
71 K31 BN 0.75 FUEL PUMP CONTROL N/A
72 Z909 BK 1.5 GROUND N/A
73 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
74 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
75 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
76 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
77 F342 BN/WH 1.5 FUSED ASD RELAY OUTPUT N/A
87 K914 BN/WH 0.50 SENSOR GROUND N/A
91 K29 WH/BN 0.50 APP SIGNAL 2 N/A
92 K23 BN/WH 0.50 APP SIGNAL 1 N/A
94 K108 VT/GY 0.50 EVAP PURGE SOLENOID SENSE N/A
95 T752 DG/OG 0.75 STARTER RELAY CONTROL N/A
96 A908 RD 1.0 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
