Module-Power Liftgate C2 (Standard) Connector End View (D3839B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924126-1

Part Description: Not Available

Connector No: D3839B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Power Liftgate C2 Connector End View (Standard)

Courtesy of CHRYSLER

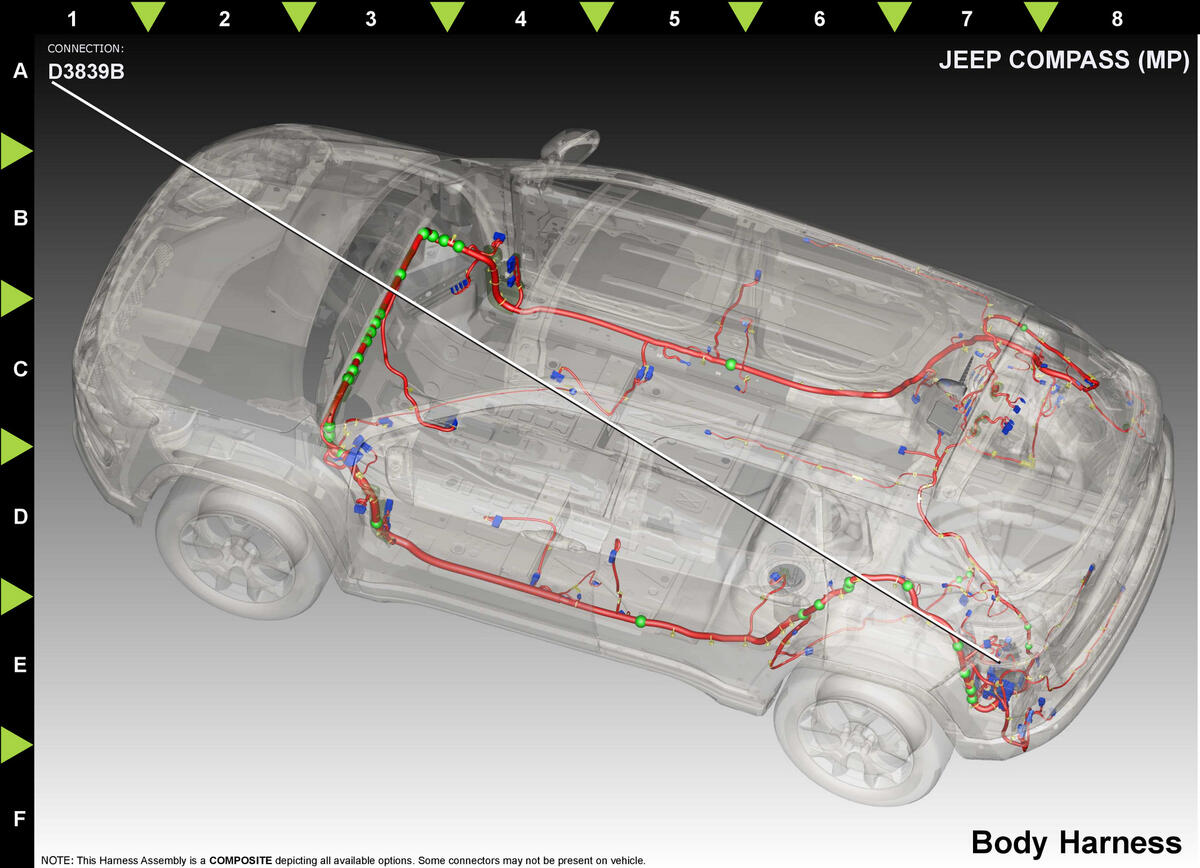

Fig 2: Module-Power Liftgate C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A111

DG/RD

2.0

FUSED B(+)

N/A

Q73

OG/VT

0.50

LATCH GEAR POSITION 2

N/A

G178

VT/OG

0.35

DECKLID/LIFTGATE AJAR SWITCH SENSE

N/A

D251

WH/OG

0.50

CAN IHS (+)

N/A

D250

0.50

CAN IHS (-)

N/A

Q92

BG/BN

0.75

LIFTGATE LATCH MOTOR (+)

N/A

Z943

2.0

GROUND

N/A

G29

0.35

LIFTGATE SWITCH SIGNAL

N/A

Q901

OG/VT

0.35

LOGIC GROUND

N/A

Q74

OG/GY

0.50

LIFTGATE LATCH CINCH DRIVER

N/A

Q60

OG/YE

0.50

LIFTGATE SECONDARY LATCH SIGNAL

N/A

Q79

OG/BU

0.50

LATCH GEAR POSITION 1

N/A

Q75

OG/BU

0.50

LEFT PINCH SENSOR SIGNAL

N/A

Q78

OG/DB

0.50

RIGHT PINCH SENSOR SIGNAL

N/A

G25

VT/BG

0.35

OVERHEAD CONSOLE LIFTGATE SWITCH SIGNAL

N/A

Q93

BG/OG

0.75

LIFTGATE LATCH MOTOR (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
