Module-Memory Seat C4 (Standard) Connector End View (D3873D)

Harness-Family: Seat_Driver

Color: BLACK

Gender: FEMALE

Part Number: 772-716-541

Part Description: Not Available

Connector No: D3873D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Memory Seat C4 Connector End View (Standard)

Courtesy of CHRYSLER

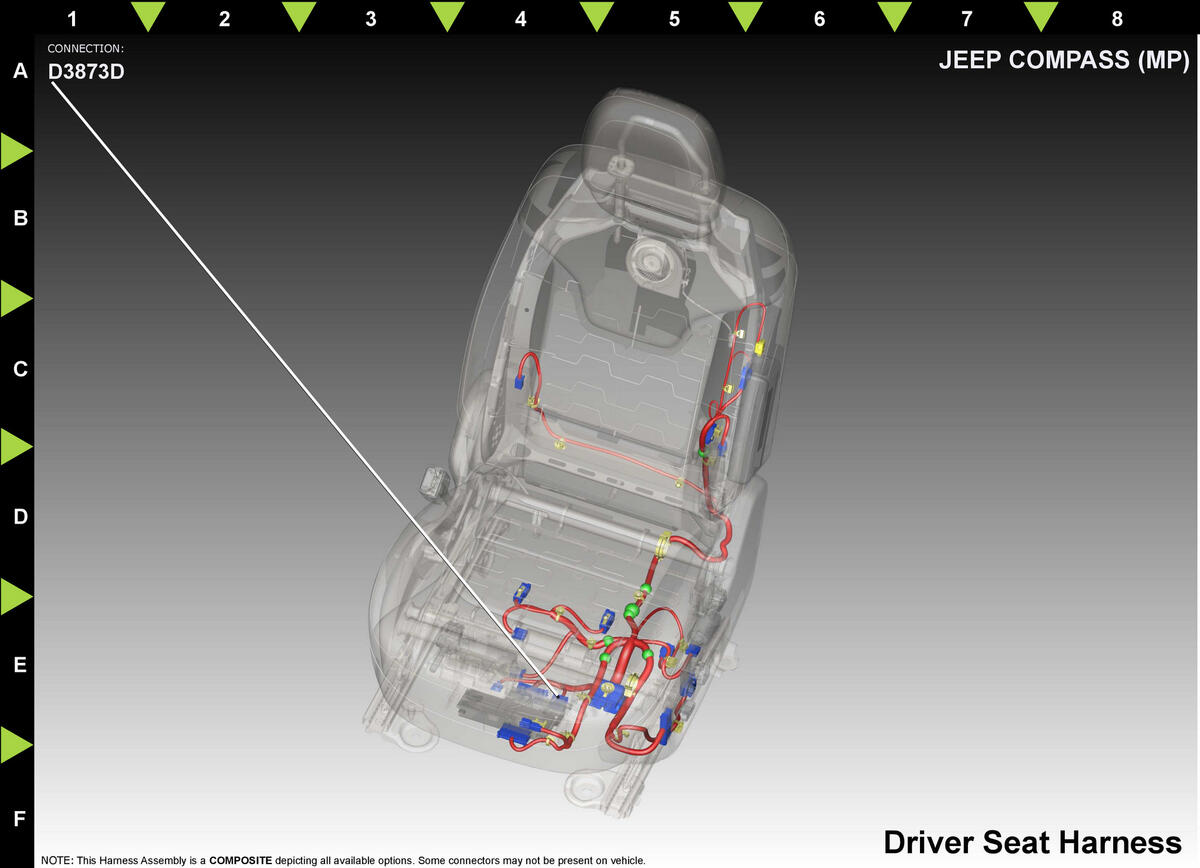

Fig 2: Module-Memory Seat C4 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G493

OG/VT

0.35

POSITION SENSOR GROUND

N/A

P141

GN/BN

2.0

DRIVER SEAT RECLINER UP DRIVER

N/A

P143

GN/GY

2.0

DRIVER SEAT RECLINER DOWN DRIVER

N/A

G403

VT/OG

0.35

DRIVER SEAT RECLINER POSITION SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
