Module-Memory Seat C1 (Standard) Connector End View (D3873A)

Harness-Family: Seat_Driver

Color: BLACK

Gender: FEMALE

Part Number: 772-715-541

Part Description: Not Available

Connector No: D3873A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Memory Seat C1 Connector End View (Standard)

Courtesy of CHRYSLER

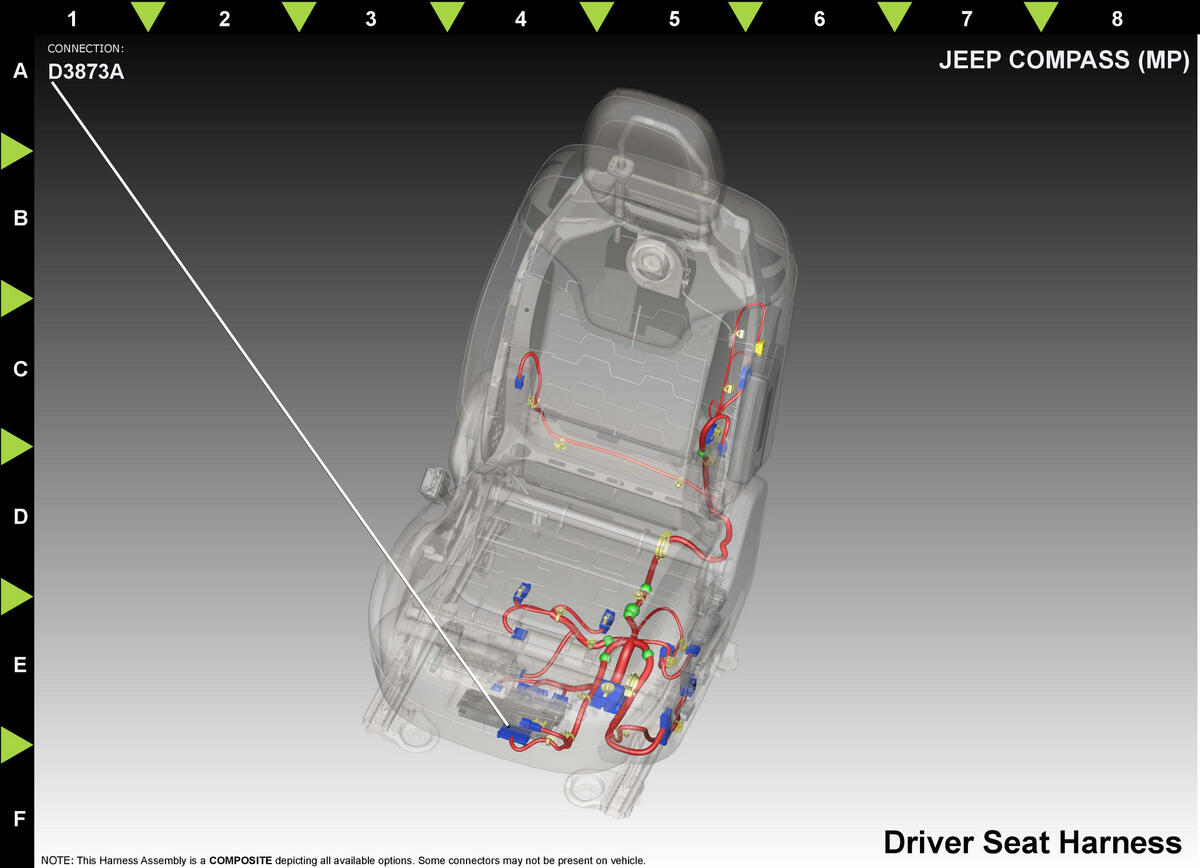

Fig 2: Module-Memory Seat C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D166

0.50

CAN IHS (-)

N/A

D165

WH/BU

0.50

CAN IHS (+)

N/A

A942

2.0

FUSED B(+)

N/A

Z941

2.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
