Module-Heated Seats C2 (Standard) Connector End View (D3846B)

Harness-Family: Seat_Pass

Color: NATURAL

Gender: FEMALE

Part Number: 2-2177196-1_2177231-1

Part Description: Not Available

Connector No: D3846B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Heated Seats C2 Connector End View (Standard)

Courtesy of CHRYSLER

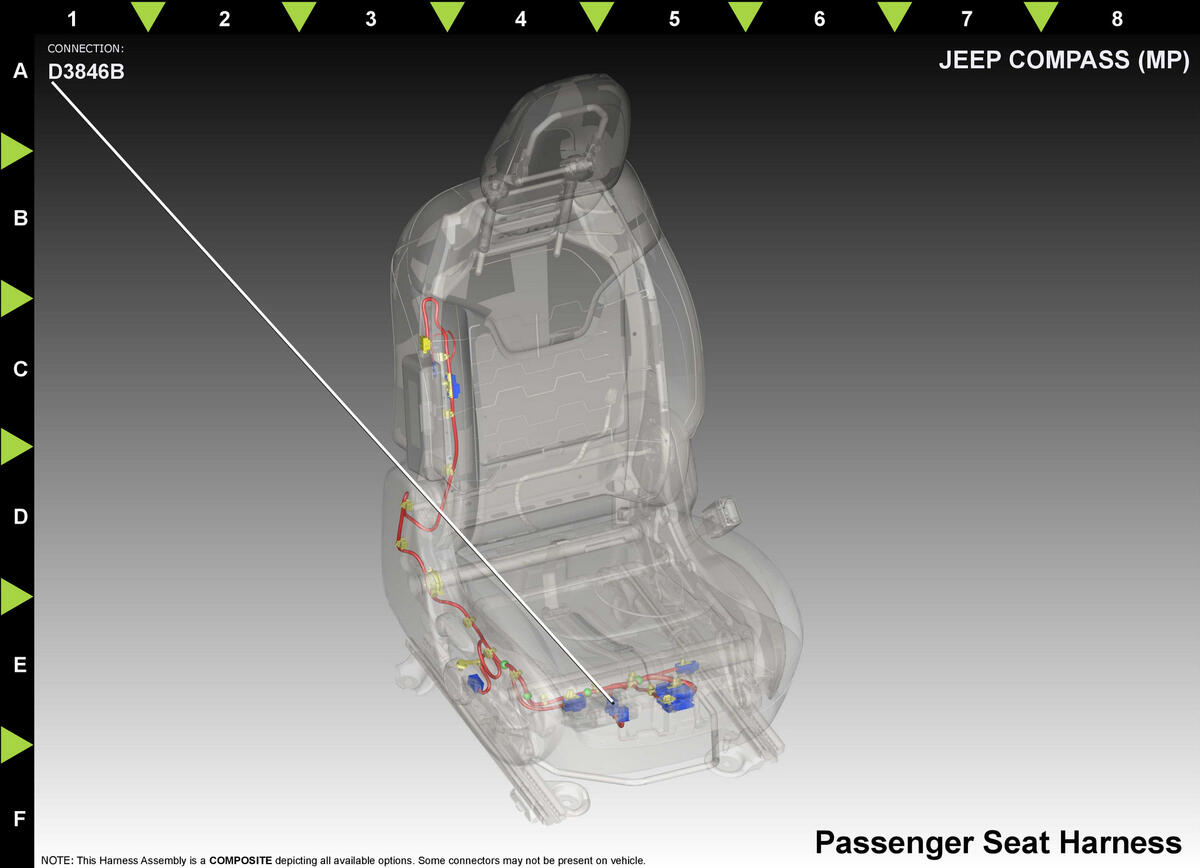

Fig 2: Module-Heated Seats C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P687

BG/YE

0.75

LEFT FRONT HEATED SEAT TEMP SENSE

N/A

P688

BG/DB

0.75

RIGHT FRONT HEATED SEAT TEMP SENSE

N/A

P968

BG/WH

0.50

HEATED SEAT SENSOR RETURN

N/A

P187

GN/BN

0.50

LEFT FRONT SEAT HEATER CONTROL

N/A

P188

GN/VT

0.50

RIGHT FRONT SEAT HEATER CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
