Module-Glow Plug C2 (Standard) Connector End View (D3913B)

Harness-Family: Engine_Diesel

Color: BLACK

Gender: FEMALE

Part Number: 1/11242/97

Part Description: Not Available

Connector No: D3913B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

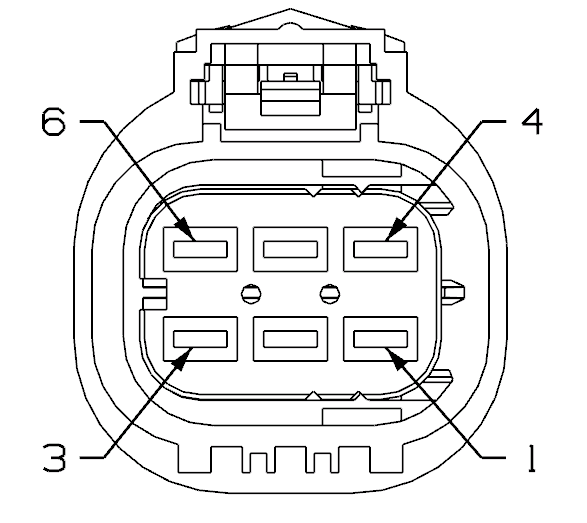

Fig 1: Module-Glow Plug C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Glow Plug C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A203

2.5

FUSED B(+)

N/A

A202

2.5

FUSED B(+)

N/A

A204

2.5

FUSED B(+)

N/A

A208

2.5

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
