Module-Glow Plug C1 (Standard) Connector End View (D3913A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1718878-1

Part Description: Not Available

Connector No: D3913A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

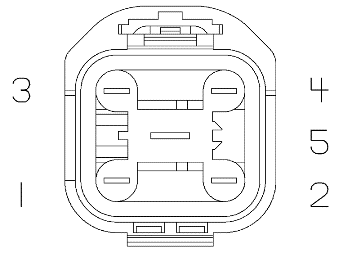

Fig 1: Module-Glow Plug C1 Connector End View (Standard)

Courtesy of CHRYSLER

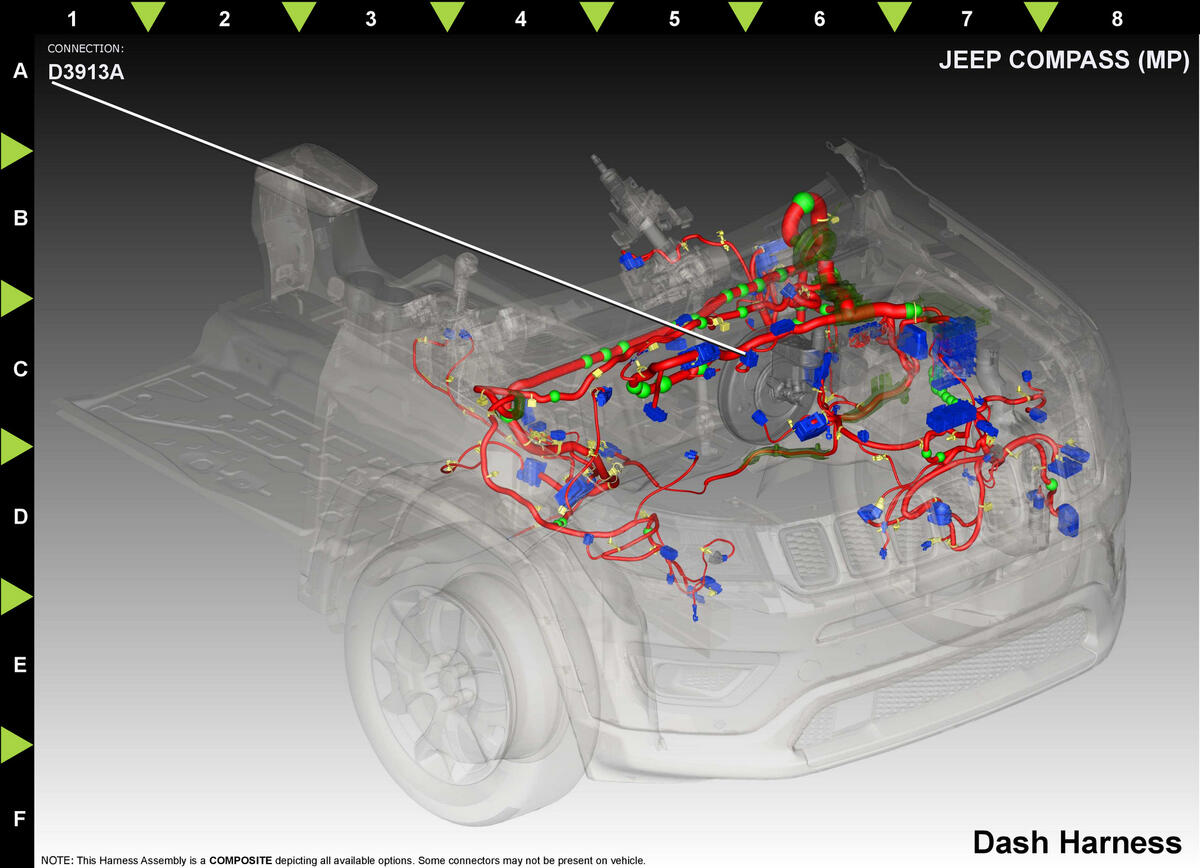

Fig 2: Module-Glow Plug C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K330

BN/BU

0.75

GLOW PLUG MODULE CTRL

N/A

K202

DB/VT

1.0

GLOW PLUG RELAY CONTROL

N/A

K348

BN/YE

0.75

SMART POWER RELAY RTN

N/A

F343

BN/YE

1.0

FUSED ASD RELAY OUTPUT

N/A

A950

6.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
