Module-Electronic Overhead (Standard) Connector End View (D6627A)

Harness-Family: Headliner

Color: WHITE

Gender: FEMALE

Part Number: 17210690

Part Description: Not Available

Connector No: D6627A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Electronic Overhead Connector End View (Standard)

Courtesy of CHRYSLER

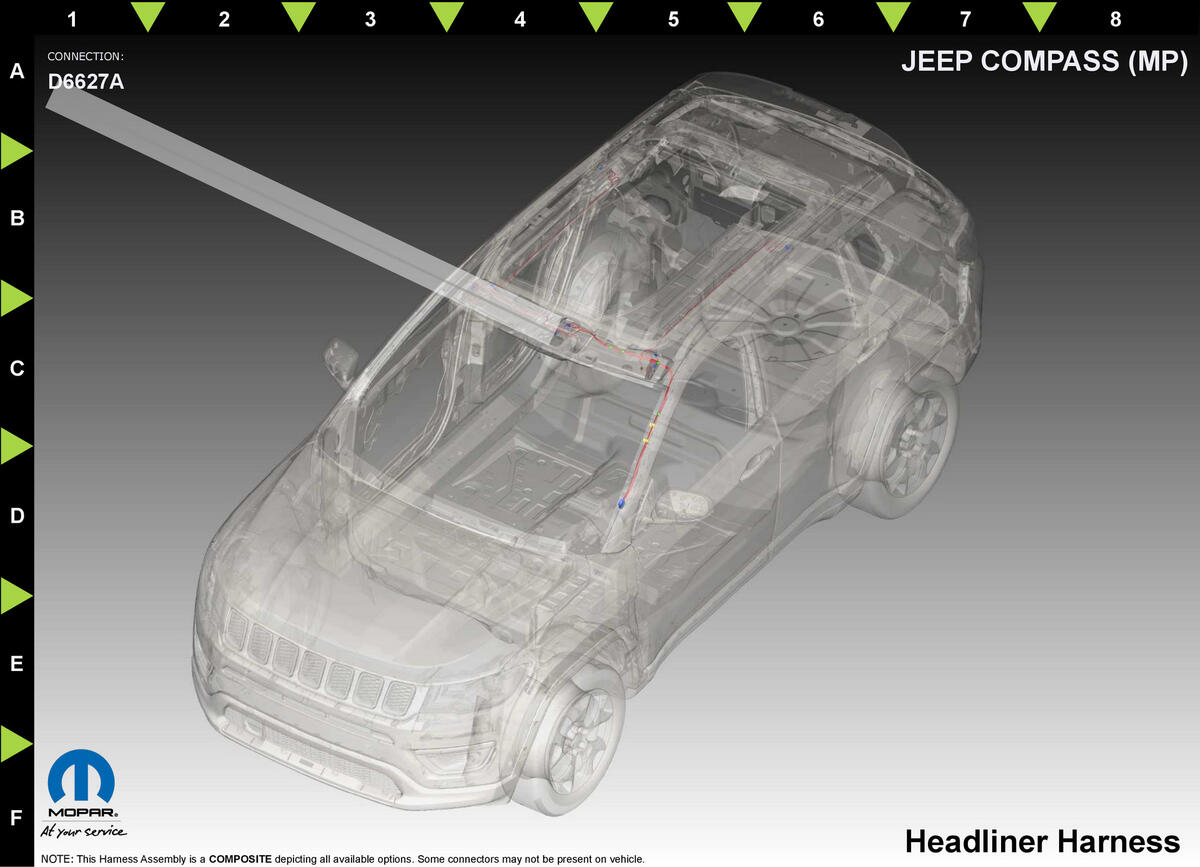

Fig 2: Module-Electronic Overhead Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A910

0.75

FUSED B(+)

N/A

Z931

0.75

GROUND

N/A

M20

YE/BU

0.35

DOME LAMP CONTROL

N/A

E12

OG/GY

0.35

PANEL LAMPS DRIVER

N/A

M59

YE/GN

0.35

COURTESY LAMP FEED

N/A

M33

YE/BN

0.50

DOOR AMBIENT LAMP FEED DRIV

N/A

⁽¹⁾	Pins not listed are not used for this connector
