Module-Body Control C1 (Standard) Connector End View (D2762A)

Harness-Family: Dash

Color: GRAY

Gender: FEMALE

Part Number: 4540345/10

Part Description: Not Available

Connector No: D2762A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C1 Connector End View (Standard)
GCWD1079586Courtesy of CHRYSLER

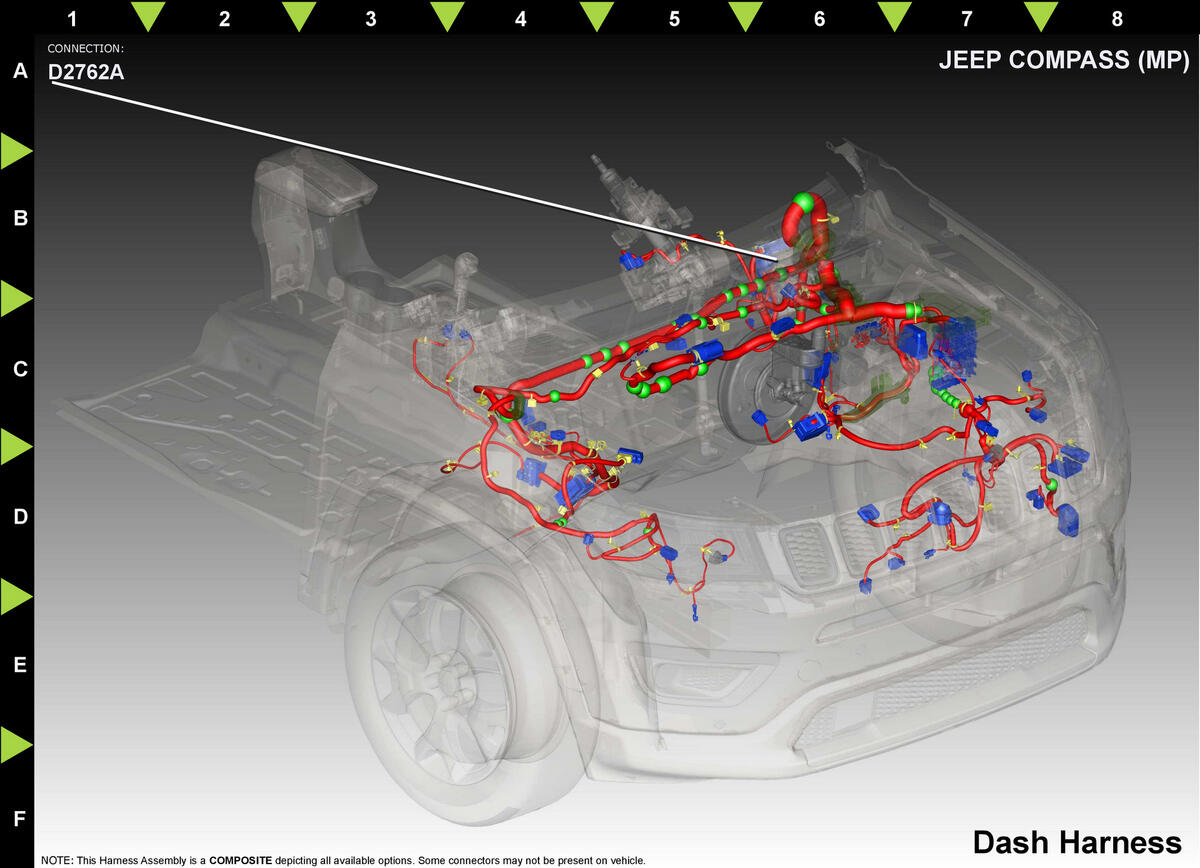

Fig 2: Module-Body Control C1 Component Location (Standard)
GCWD1257192Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A A903 RD 8.0 FUSED B(+) N/A
B A904 VT/RD 8.0 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
