Module-Adaptive Cruise Control (Standard) Connector End View (D3098A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 1-1534229-1

Part Description: Not Available

Connector No: D3098A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Adaptive Cruise Control Connector End View (Standard)

Courtesy of CHRYSLER

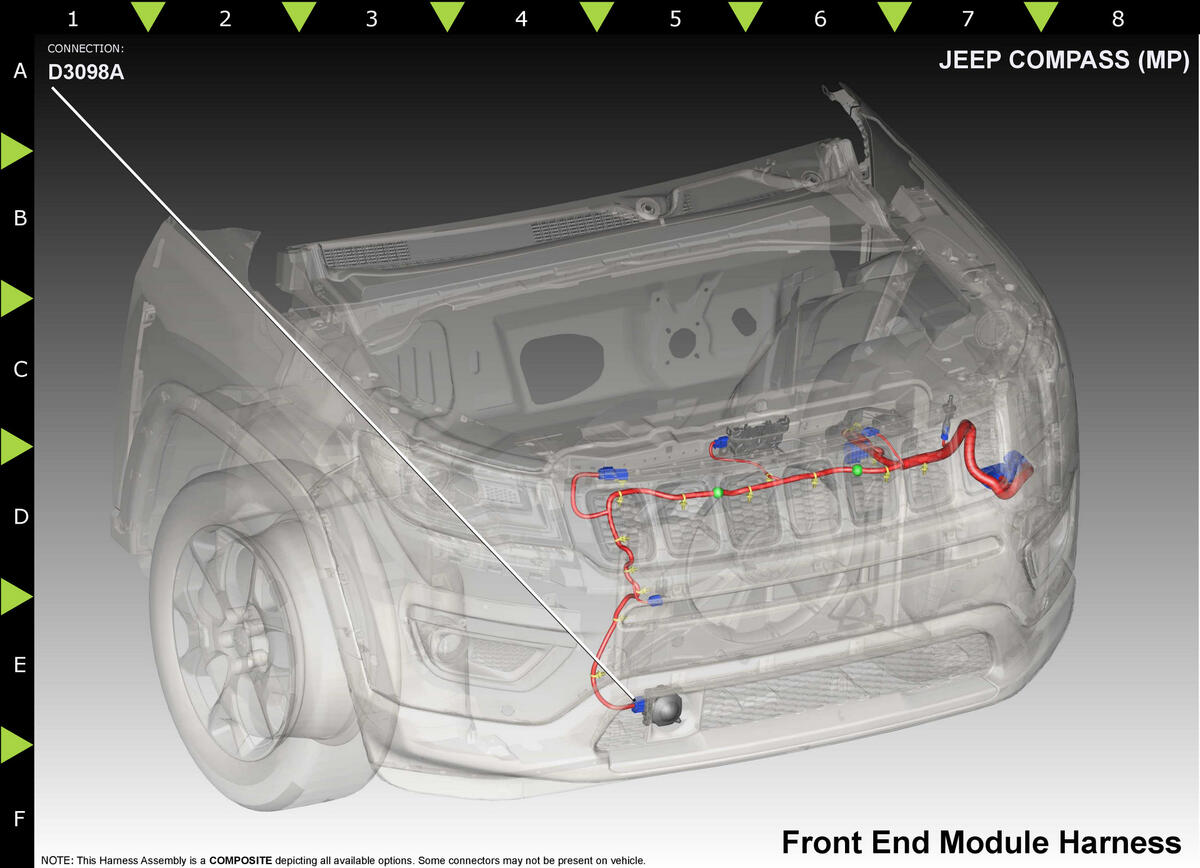

Fig 2: Module-Adaptive Cruise Control Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z907

0.50

GROUND

N/A

D249

YE/GY

0.75

CAN C (+)

N/A

D248

0.75

CAN C (-)

N/A

D449

WH/BG

0.50

PRIVATE CAN (+)

N/A

D448

0.50

PRIVATE CAN (-)

N/A

F949

PK/GN

0.50

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
