Fuse F9 30A (Standard) Connector End View (F9)

Harness-Family: PDC_REAR

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F9

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Fuse F9 30a Connector End View (Standard)

GCWD1006305

Courtesy of CHRYSLER

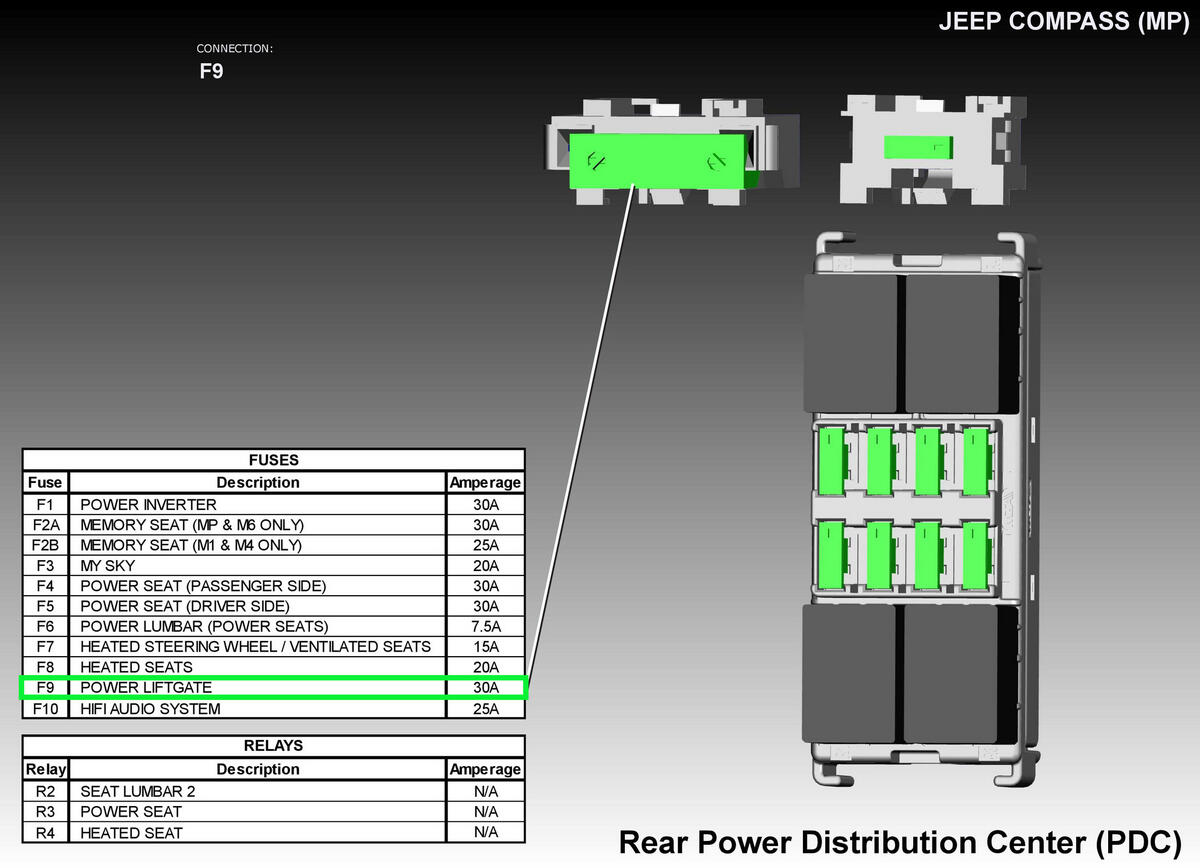

Fig 2: Fuse F9 30a Component Location (Standard)

GCWD1257383

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A906

INTERNAL

NA

FUSED B(+)

N/A

2

A111

INTERNAL

NA

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
