Can Bus Splice Block 5 (Standard) Connector End View (D3201A)

Harness-Family: Body

Color: RED

Gender: FEMALE

Part Number: 33190053_33157038

Part Description: Not Available

Connector No: D3201A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

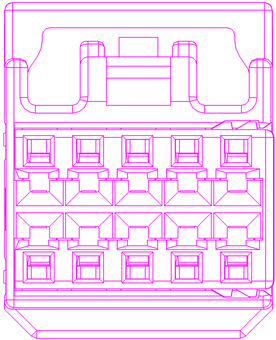

Fig 1: Can Bus Splice Block 5 Connector End View (Standard)
GCWD1000283Courtesy of CHRYSLER

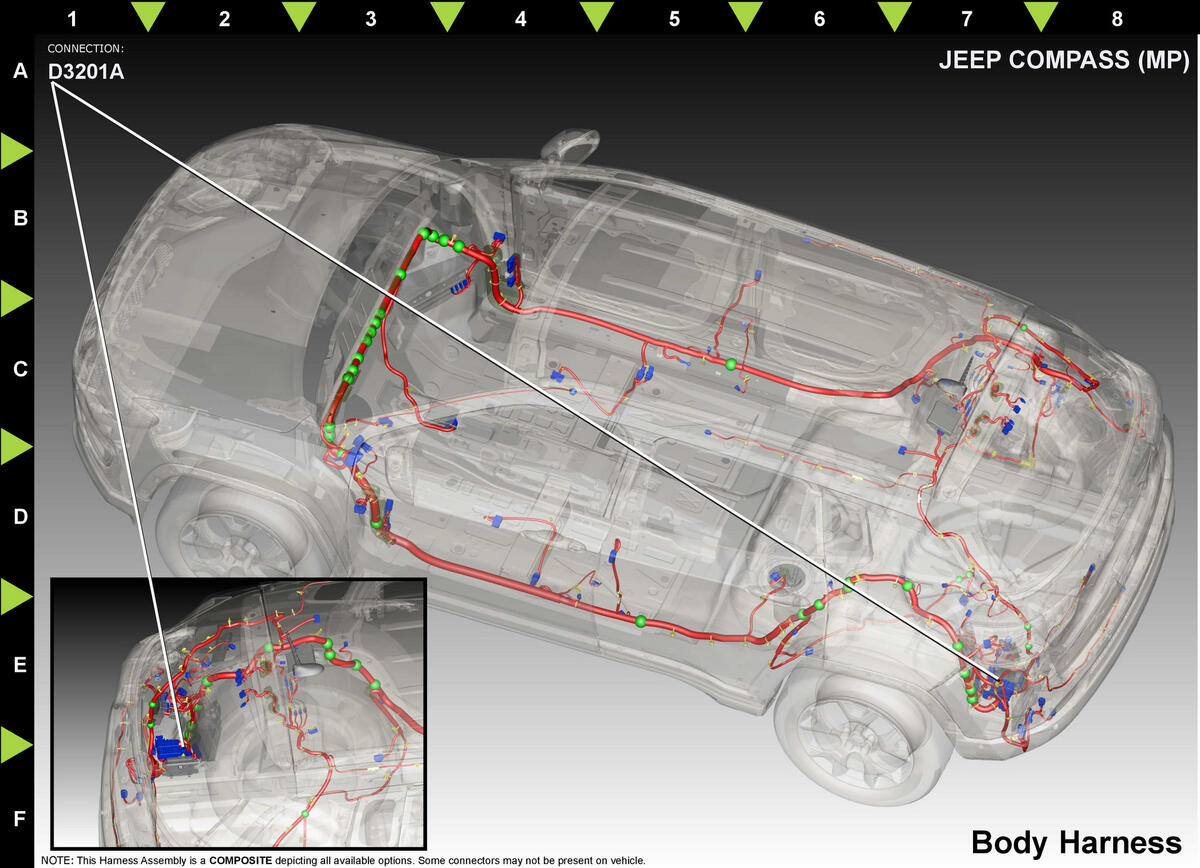

Fig 2: Can Bus Splice Block 5 Component Location (Standard)
GCWD1257211Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D17 OG 0.50 CAN IHS (+) N/A
2 D17 OG 0.50 CAN IHS (+) N/A
3 D251 WH/OG 0.50 CAN IHS (+) N/A
4 D191 BN/OG 0.50 CAN IHS (+) N/A
5 D207 WH/GN 0.50 CAN IHS (+) N/A
6 D18 WH/OG 0.50 CAN IHS (-) N/A
7 D18 WH/OG 0.50 CAN IHS (-) N/A
8 D250 WH 0.50 CAN IHS (-) N/A
9 D192 WH/OG 0.50 CAN IHS (-) N/A
10 D206 WH 0.50 CAN IHS (-) N/A
(1) Pins not listed are not used for this connector
