Can Bus Splice Block 4 (Standard) Connector End View (D3200A)

Harness-Family: Body

Color: RED

Gender: FEMALE

Part Number: 33178000_33177196_13678636

Part Description: Not Available

Connector No: D3200A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Can Bus Splice Block 4 Connector End View (Standard)
GCWD1011873Courtesy of CHRYSLER

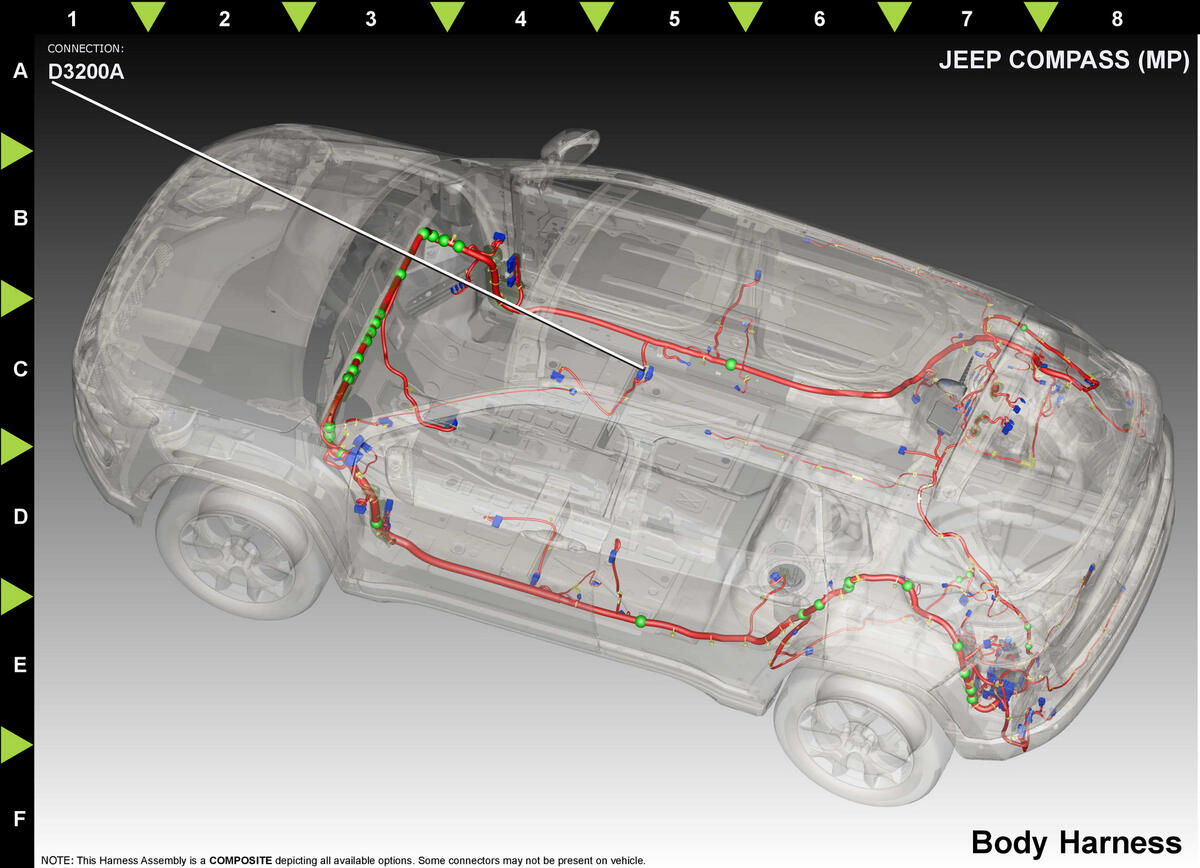

Fig 2: Can Bus Splice Block 4 Component Location (Standard)
GCWD1257175Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D17 OG 0.50 CAN IHS (+) N/A
2 D17 OG 0.50 CAN IHS (+) N/A
3 D163 WH/DB 0.50 CAN IHS (+) N/A
7 D18 WH/OG 0.50 CAN IHS (-) N/A
8 D18 WH/OG 0.50 CAN IHS (-) N/A
9 D164 WH 0.50 CAN IHS (-) N/A
(1) Pins not listed are not used for this connector
