Can Bus Splice Block 20 (Standard) Connector End View (D3216A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 13678638_33177196_13678636

Part Description: Not Available

Connector No: D3216A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Can Bus Splice Block 20 Connector End View (Standard)
GCWD1255745Courtesy of CHRYSLER

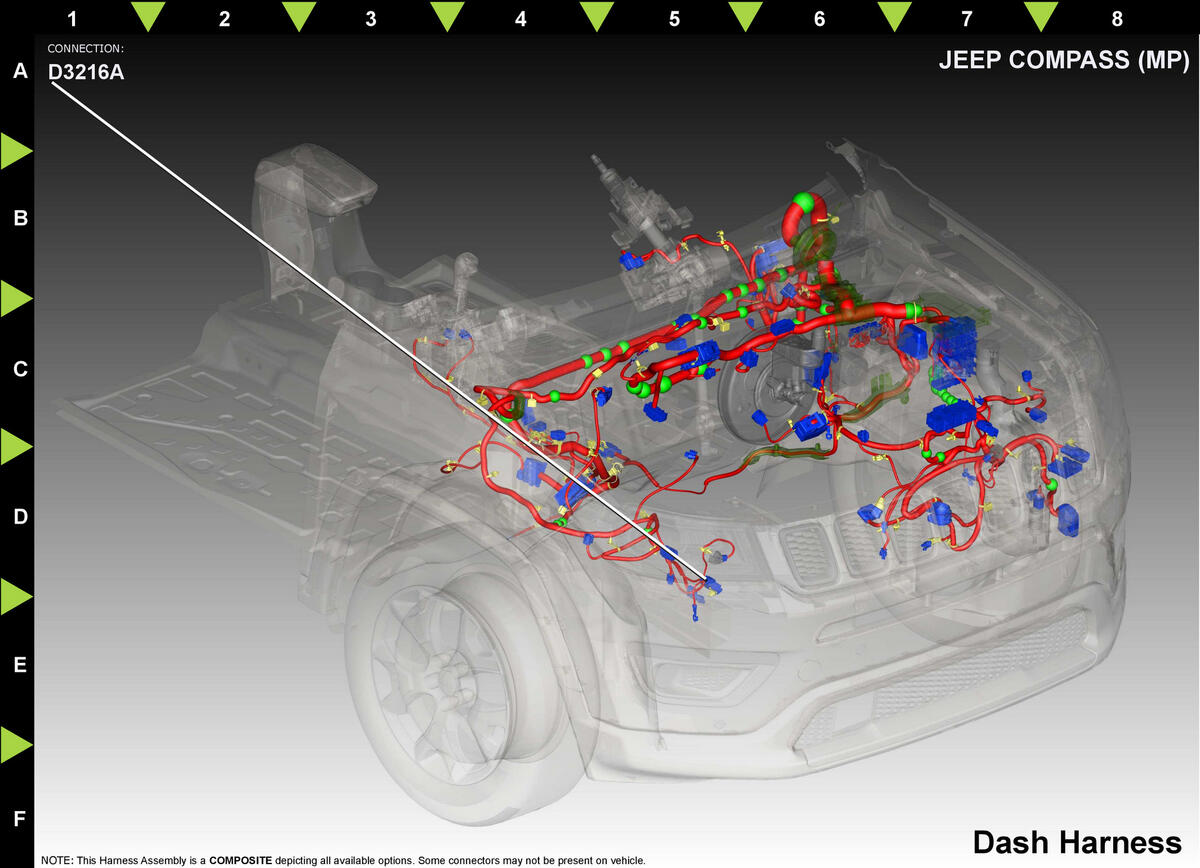

Fig 2: Can Bus Splice Block 20 Component Location (Standard)
GCWD1257463Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D469 GY 0.75 PRIVATE CAN (+) N/A
2 D469 GY 0.75 PRIVATE CAN (+) N/A
3 D480 GY/OG 0.75 PRIVATE CAN (+) N/A
7 D468 GY/WH 0.75 PRIVATE CAN (-) N/A
8 D468 GY/WH 0.75 PRIVATE CAN (-) N/A
9 D481 BG 0.75 PRIVATE CAN (-) N/A
(1) Pins not listed are not used for this connector
