Can Bus Splice Block 18 (Standard) Connector End View (D3214A)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 33190054_33157038

Part Description: Not Available

Connector No: D3214A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Can Bus Splice Block 18 Connector End View (Standard)

Courtesy of CHRYSLER

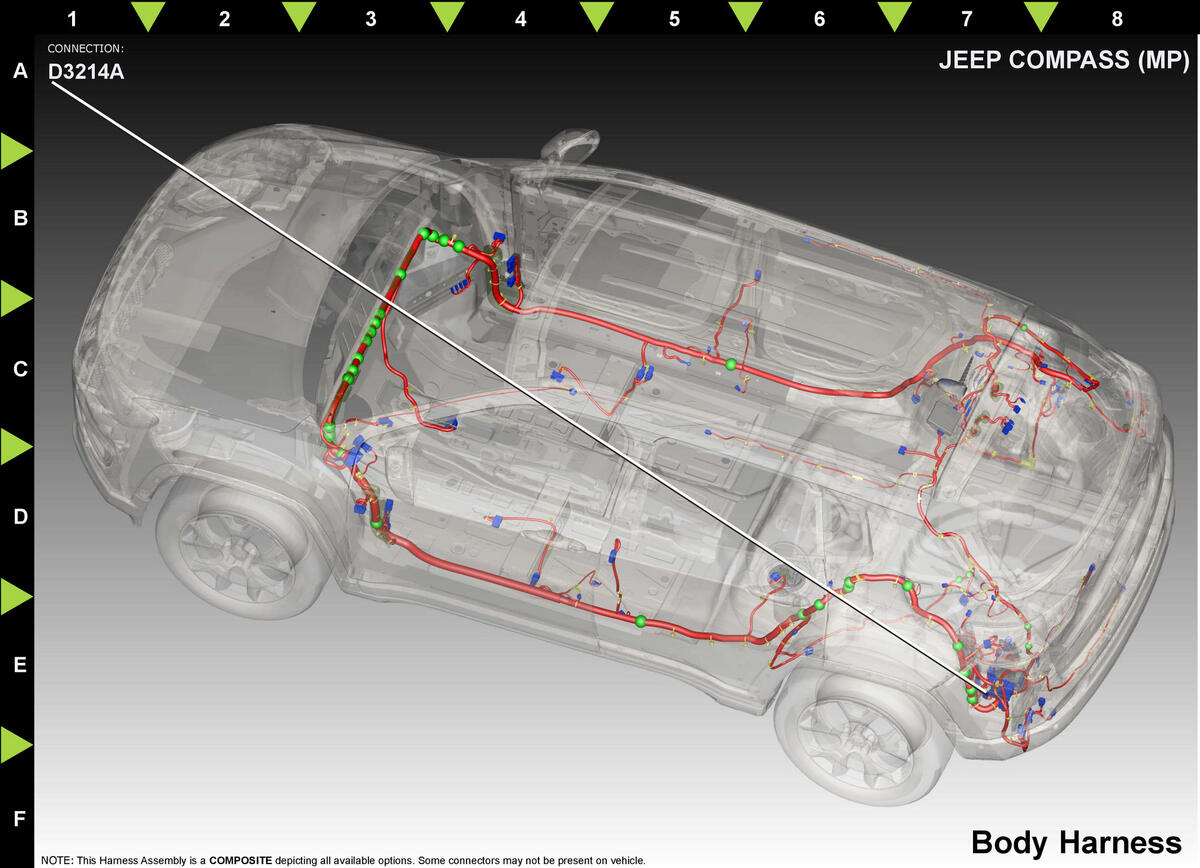

Fig 2: Can Bus Splice Block 18 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

0.50

CAN CH (+)

N/A

0.50

CAN CH (+)

N/A

D77

0.50

CAN CH (+)

N/A

0.50

CAN CH (-)

N/A

0.50

CAN CH (-)

N/A

D78

0.50

CAN CH (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
