Can Bus Splice Block 17 (Standard) Connector End View (D3213A)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 33190054_33157038

Part Description: Not Available

Connector No: D3213A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

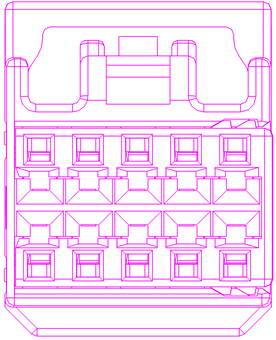

Fig 1: Can Bus Splice Block 17 Connector End View (Standard)
GCWD1000760Courtesy of CHRYSLER
Fig 2: Can Bus Splice Block 17 Component Location (Standard)
GCWD1257157Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D3 DB 0.50 CAN CH (+) N/A
2 D3 DB 0.50 CAN CH (+) N/A
3 D360 BG/VT 0.50 CAN CH (+) N/A
5 D349 YE/WH 0.50 CAN CH (+) N/A
6 D4 YE 0.50 CAN CH (-) N/A
7 D4 YE 0.50 CAN CH (-) N/A
8 D361 BG 0.50 CAN CH (-) N/A
10 D348 YE 0.50 CAN CH (-) N/A
(1) Pins not listed are not used for this connector
