Can Bus Splice Block 15 (Standard) Connector End View (D3211A)

Harness-Family: Dash

Color: BLUE

Gender: FEMALE

Part Number: 33190054_33157038

Part Description: Not Available

Connector No: D3211A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Can Bus Splice Block 15 Connector End View (Standard)
GCWD1000760Courtesy of CHRYSLER

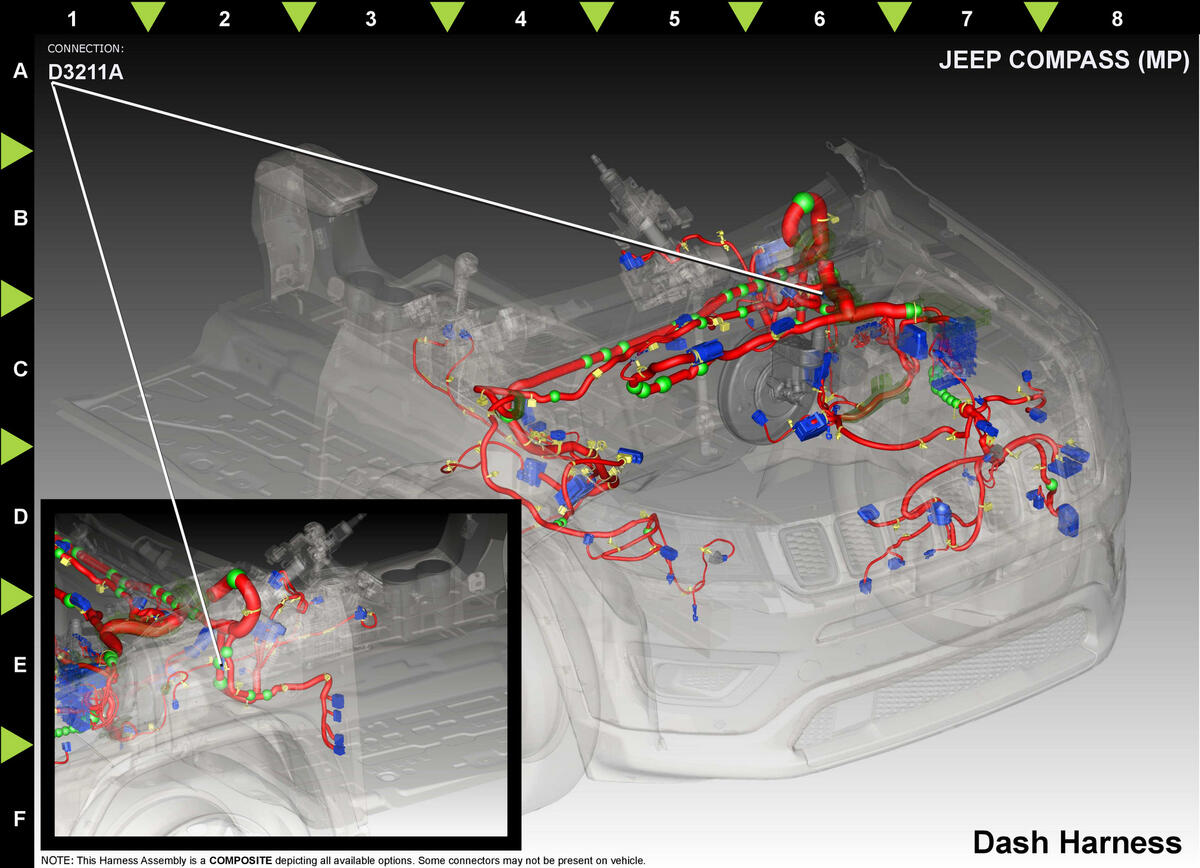

Fig 2: Can Bus Splice Block 15 Component Location (Standard)
GCWD1256999Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D497 DB/WH 0.35 CAN CH (+) N/A
2 D3 DB 0.50 CAN CH (+) N/A
3 D139 YE/BN 0.50 CAN CH (+) N/A
4 D52 WH/BU 0.50 CAN CH (+) N/A
6 D498 YE 0.35 CAN CH (-) N/A
7 D4 YE 0.50 CAN CH (-) N/A
8 D138 YE 0.50 CAN CH (-) N/A
9 D51 WH/BN 0.50 CAN CH (-) N/A
(1) Pins not listed are not used for this connector
