Can Bus Splice Block 13 (Standard) Connector End View (D3209A)

Harness-Family: Body

Color: PURPLE

Gender: FEMALE

Part Number: 33178007_33177196_13678636

Part Description: Not Available

Connector No: D3209A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

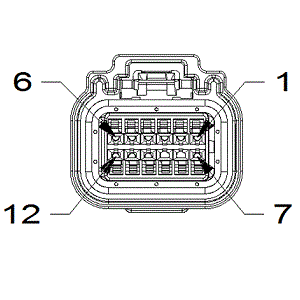

Fig 1: Can Bus Splice Block 13 Connector End View (Standard)

Courtesy of CHRYSLER

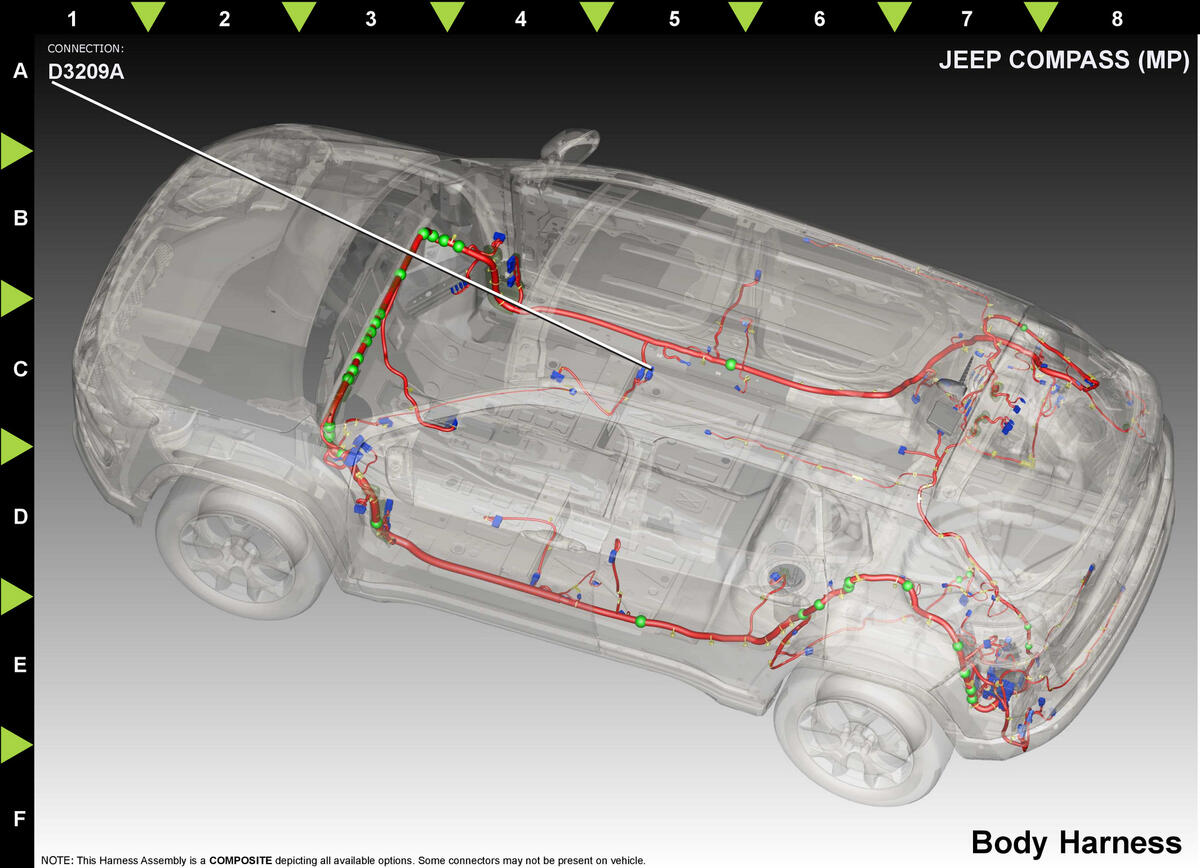

Fig 2: Can Bus Splice Block 13 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

BG/WH

0.50

CAN C (+)

N/A

BG/WH

0.50

CAN C (+)

N/A

D13

YE/BU

0.50

CAN C (+)

N/A

0.50

CAN C (-)

N/A

0.50

CAN C (-)

N/A

D14

0.50

CAN C (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
