Can Bus Splice Block 12 (Standard) Connector End View (D3208A)

Harness-Family: IP

Color: PURPLE

Gender: FEMALE

Part Number: 33190055_33157038

Part Description: Not Available

Connector No: D3208A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

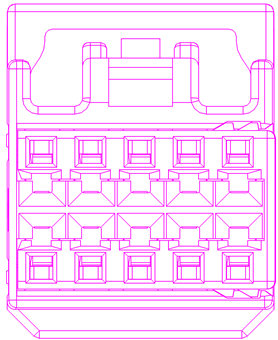

Fig 1: Can Bus Splice Block 12 Connector End View (Standard)

Courtesy of CHRYSLER

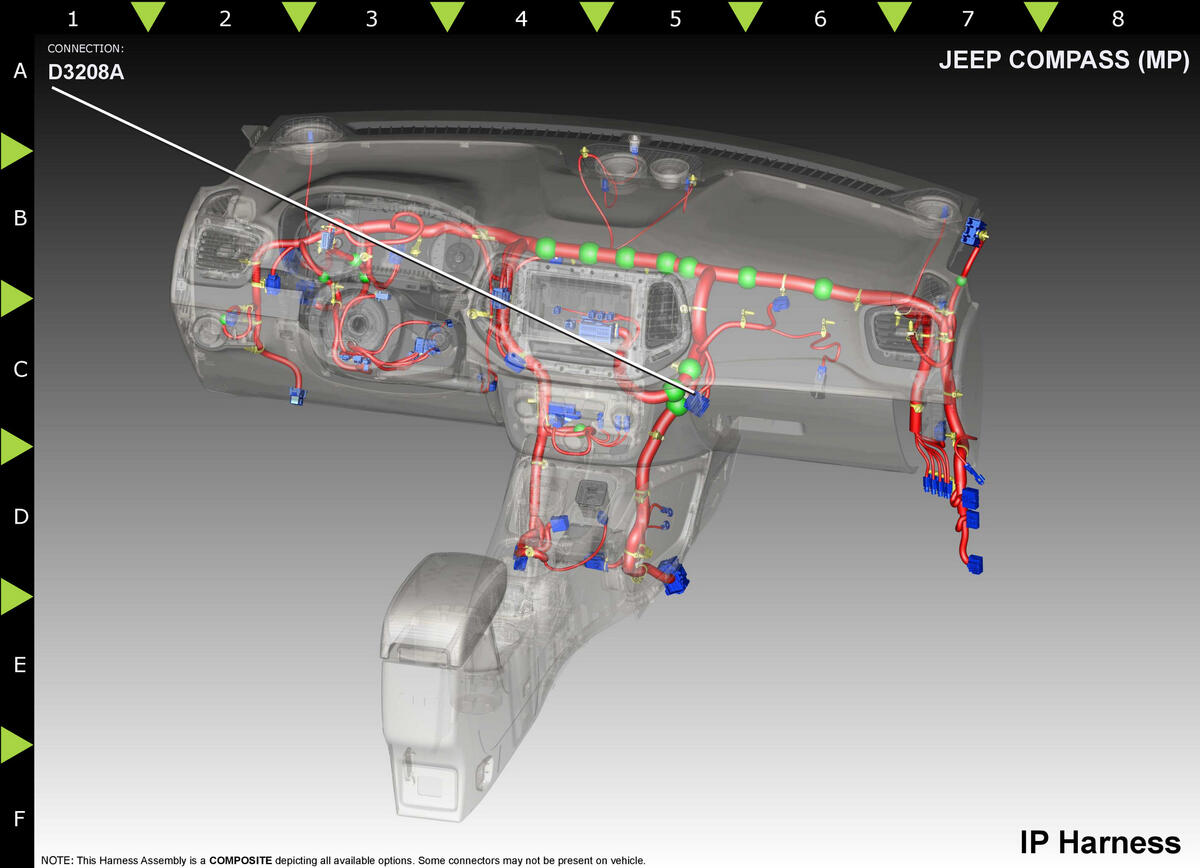

Fig 2: Can Bus Splice Block 12 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

BG/WH

0.50

CAN C (+)

N/A

BG/WH

0.50

CAN C (+)

N/A

D11

YE/DB

0.50

CAN C (+)

N/A

0.50

CAN C (-)

N/A

0.50

CAN C (-)

N/A

D12

0.50

CAN C (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
