Module-Transmission Control (DF5 9 Speed) Connector End View (D3855A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 22400794001-10234176-1_04_00_75899_1

Part Description: Not Available

Connector No: D3855A

Option: DF5 9 SPEED

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Transmission Control Connector End View (DF5 9 SPEED)

Courtesy of CHRYSLER

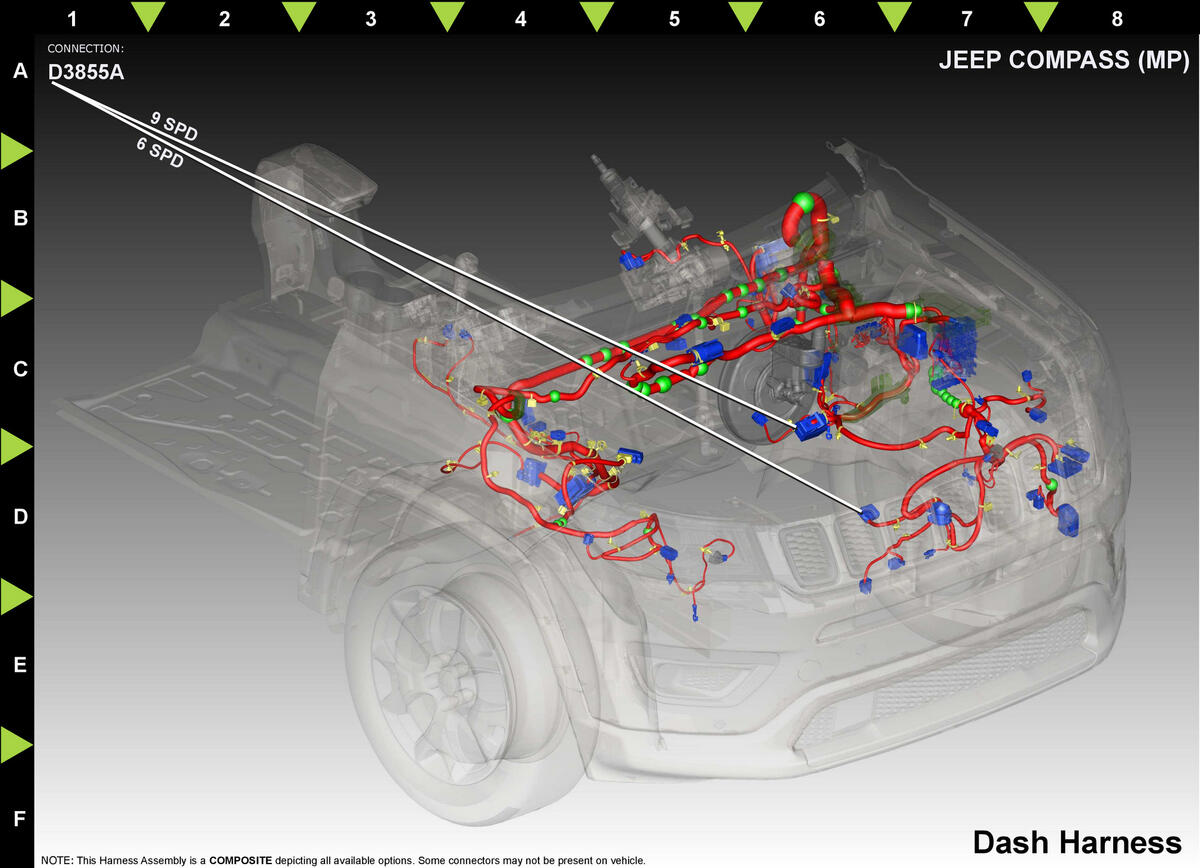

Fig 2: Module-Transmission Control Component Location (DF5 9 SPEED)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z907

1.0

GROUND

N/A

Z907

1.0

GROUND

N/A

A192

VT/RD

0.75

FUSED B(+)

N/A

T191

DG/BK

0.50

SENSOR GROUND

N/A

F942

PK/VT

0.50

FUSED IGNITION RUN

N/A

F893

YE/PK

0.50

5 VOLT SUPPLY

N/A

T41

YE/DB

0.50

TRS T41 SIGNAL

N/A

F887

VT/PK

0.75

9V SNSR SUPPLY

N/A

DG/DB

0.50

TRS T3 SIGNAL

N/A

T42

DG/YE

0.50

TRS T42 SIGNAL

N/A

DG/BU

0.50

TRS T1 SIGNAL

N/A

T819

YE/VT

0.75

TORQUE CONVERTER OIL TEMP SIG

N/A

T38

YE/BN

0.75

LINE PRESSURE SIGNAL

N/A

T23

YE/OG

0.75

TRANS TEMP RETURN

N/A

T52

DG/OG

0.50

INPUT SPEED SIGNAL

N/A

D29

VT/WH

0.75

CAN C (+)

N/A

T808

DG/GY

0.75

SHUT OFF VALVE CONTROL

N/A

T62

YE/DG

0.50

DOG CLUTCH SOLENOID F

N/A

T61

YE/BG

0.50

DOG CLUTCH SOLENOID A

N/A

T388

YE/BN

0.50

PRESSURE CONTROL SOLENOID LINE PRESSURE

N/A

T328

DG/GN

0.50

PRESSURE CONTROL SOLENOID D

N/A

T14

DG/BN

0.50

OUTPUT SPEED SIGNAL

N/A

D30

0.75

CAN C (-)

N/A

T64

YE/DB

0.50

HOLDING MAGNET PARK LOCK SOLENOID

N/A

T118

0.50

PRESSURE CONTROL SOLENOID TORQUE CONVERTER

N/A

T329

DG/BN

0.50

PRESSURE CONTROL SOLENOID E

N/A

T325

DG/OG

0.50

PRESSURE CONTROL SOLENOID B

N/A

T326

DG/BG

0.50

PRESSURE CONTROL SOLENOID C

N/A

⁽¹⁾	Pins not listed are not used for this connector
