Removal And Installation: Removal

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the DLC connector, remove the fasteners (1), and lower the bracket (2). Hood release cable does need to be removed if only lowering bracket.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the BCM wire harness connectors (1) on the front of the BCM.

Courtesy of CHRYSLER GROUP, LLC

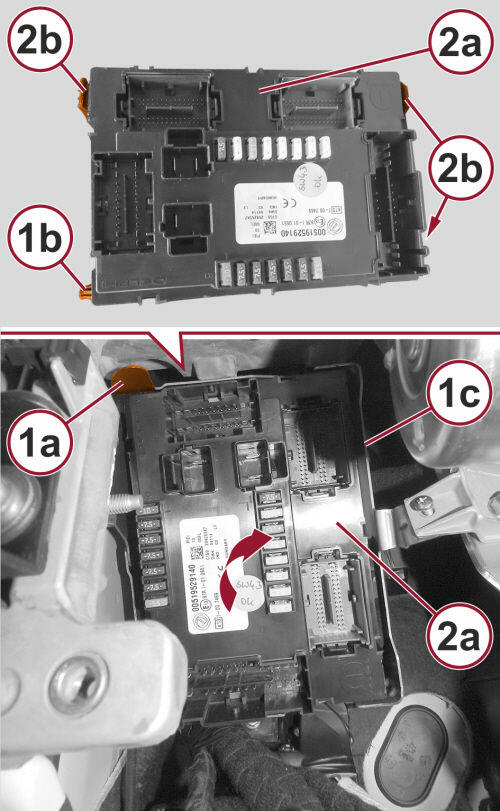

Using a suitable tool, release the retainer (1a) and then release the pin (1b) from the bracket (1c).
Turn the BCM (2a), release the retainers (2b) and move the BCM to access the wire harness connectors on the back of the BCM.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the wire harness connectors (1) from the back of the BCM.
Remove the BCM from the vehicle.
