Removal And Installation: Removal

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the instrument cluster bezel from the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL AND INSTALLATION .

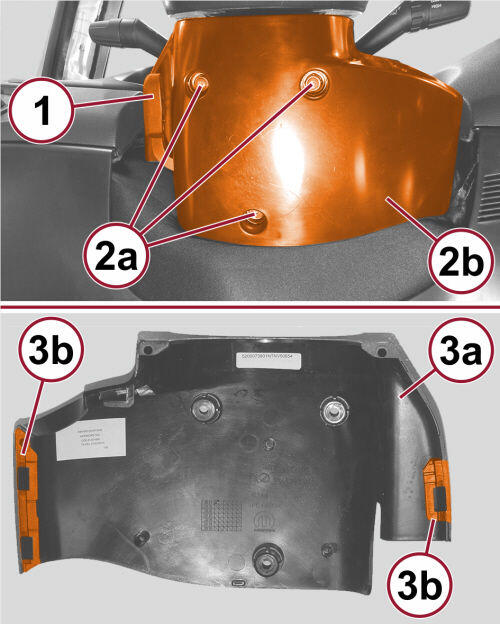

    GC0165749Courtesy of CHRYSLER GROUP, LLC
  3. Lower the steering wheel position lever (1).
  4. Remove the fasteners (2a) securing the bottom cover (2b) of the steering column.
  5. Remove the bottom cover (3a) by disengaging the retainers (3b).

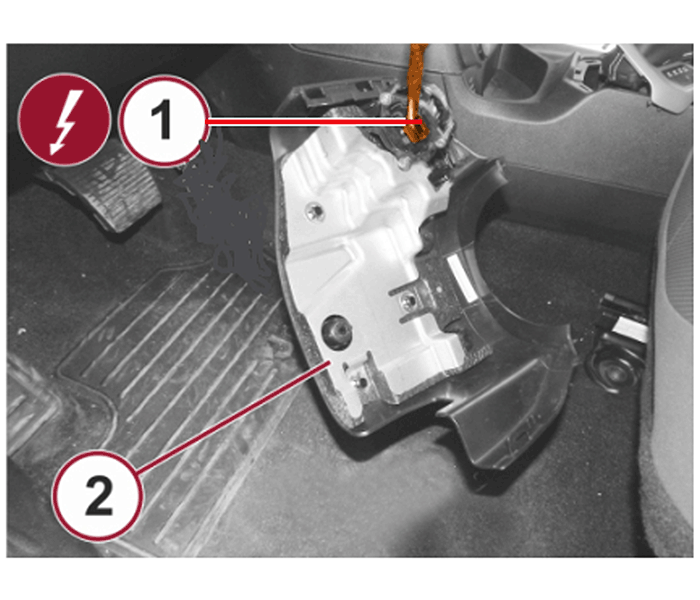

    GC0188383Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the Keyless Ignition Node (KIN) wire harness connector.
  7. Remove the bottom cover (2) of the steering column.

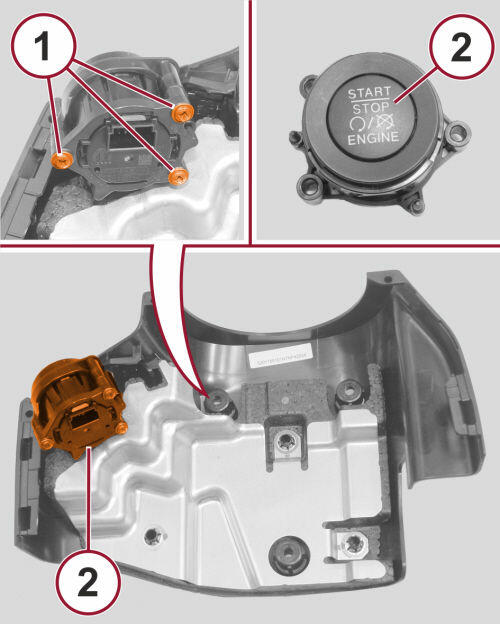

    GC0165811Courtesy of CHRYSLER GROUP, LLC
  8. Remove the KIN mounting fasteners (1).
  9. Remove the KIN (2).
