Removal And Installation: Installation

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING:

To avoid serious or fatal injury, never strike or drop the Occupant Restraint Controller (ORC), as it can damage the impact sensor or affect its calibration. The ORC contains the impact sensor, which enables the system to deploy the SRS components. If an ORC is accidentally dropped during service, the module must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper SRS component deployment.

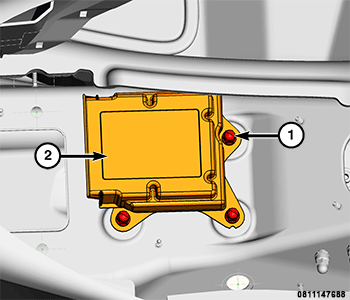

GC0183803Courtesy of CHRYSLER GROUP, LLC
  1. Carefully position the Occupant Restraint Controller (ORC) (1) onto the weld studs on the top of the floor panel center tunnel. When the ORC is correctly positioned, the bottom of the housing will fit flush with the top of the center floor and the orientation arrow on the label on top of the housing will be pointed forward in the vehicle.
  2. Install the three nuts (1) that secure the ORC (2) to the weld studs on the top of the floor panel center tunnel. Tighten the nuts to the proper specification. Refer to TORQUE SPECIFICATIONS .

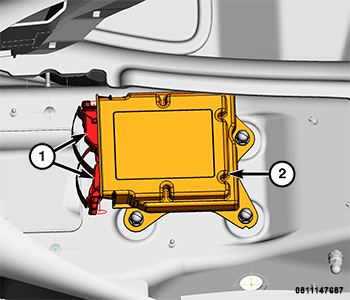

    GC0183802Courtesy of CHRYSLER GROUP, LLC
  3. Connect both wire harness connectors (1) to the ORC (2). Be certain that the latch on each connector is fully engaged.

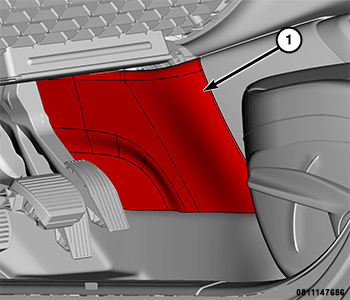

    GC0183807Courtesy of CHRYSLER GROUP, LLC
  4. Install the floor console side panels (1).
    NOTE:

    If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.

  5. If this Electronic Control Unit (ECU) is being replaced with a new unit, the Initialize ORC Miscellaneous Function must be run using a diagnostic scan tool.
  6. Do not connect the negative cable to the battery at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to SUPPLEMENTAL RESTRAINT SYSTEM VERIFICATION TEST .
