Home >> Jeep >> 2019 >> Compass Trailhawk >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> (Power Liftgate Module (PLGM) - Electrical Diagnostics) >> DTC Troubleshooting >> B1945-11 Power Liftgate Pinch Sensor 2-Circuit Short To Ground >> Notes

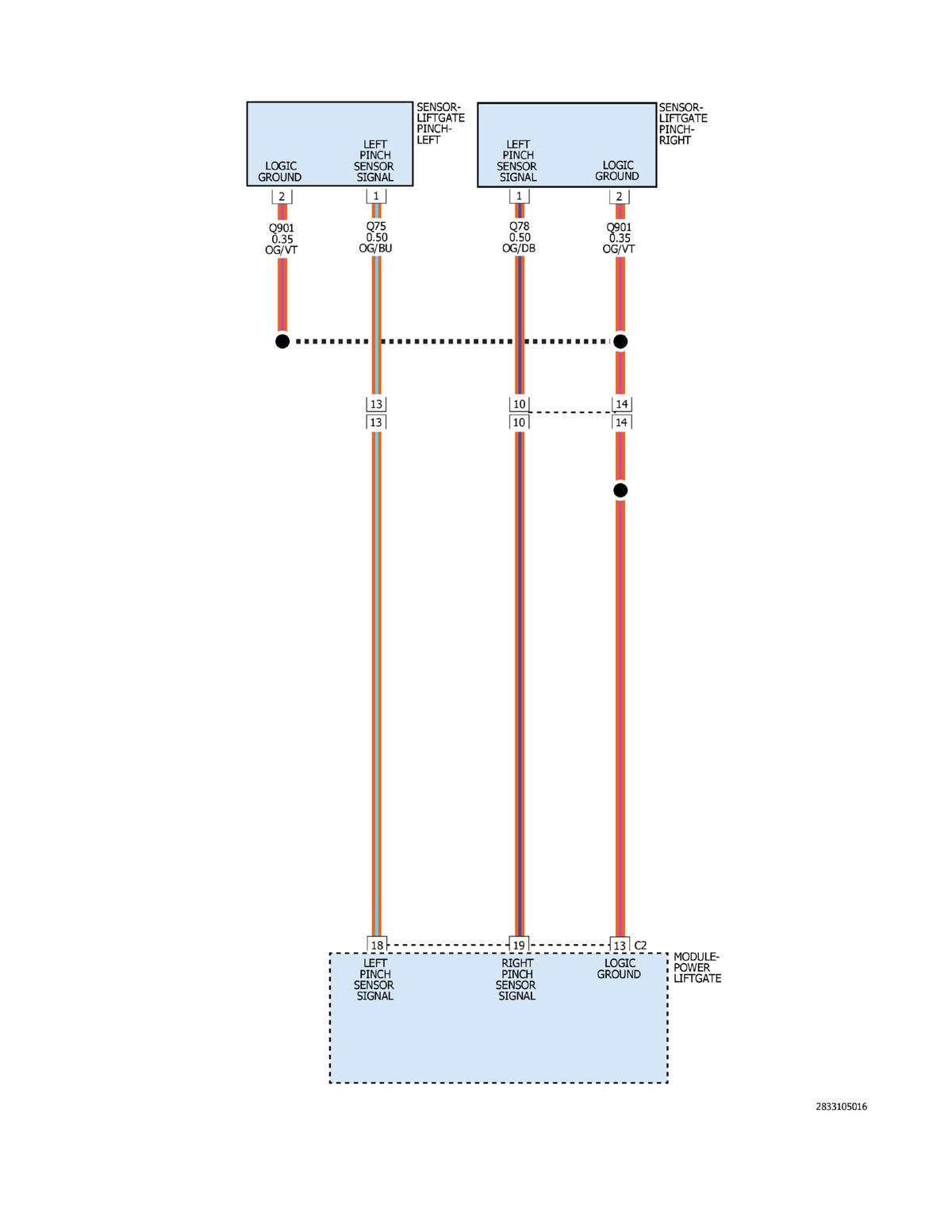

B1945-11 Power Liftgate Pinch Sensor 2-Circuit Short To Ground: Notes

GC0188640

Courtesy of CHRYSLER GROUP, LLC
