Home >> Jeep >> 2019 >> Compass Trailhawk >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> (Power Liftgate Module (PLGM) - Electrical Diagnostics) >> DTC Troubleshooting >> B188C-13 Liftgate Control Circuit 1-Circuit Open >> Notes

B188C-13 Liftgate Control Circuit 1-Circuit Open: Notes

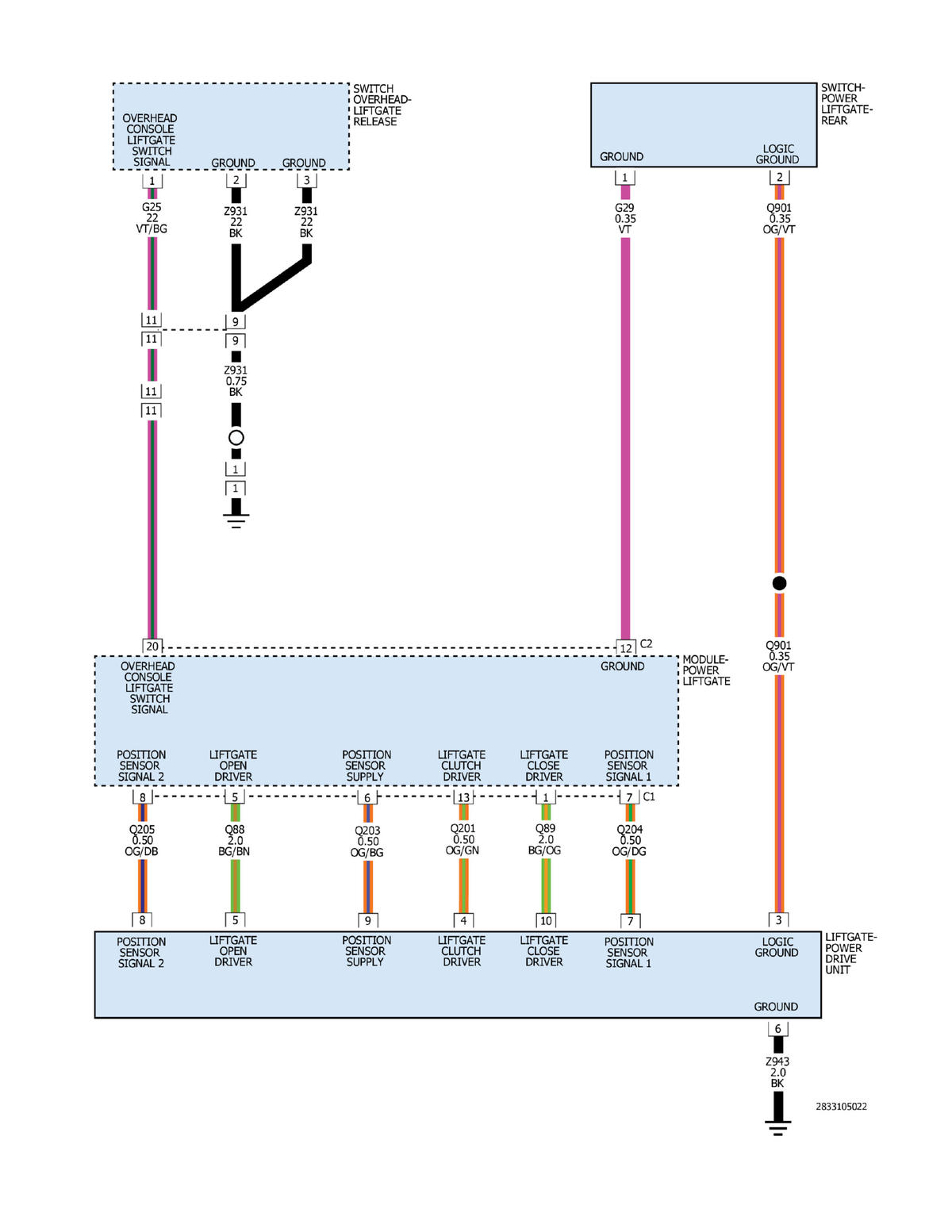

GC0188637

Courtesy of CHRYSLER GROUP, LLC
