Relay-Power Control C1 (Standard) Connector End View (D3157A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 805-120-532

Part Description: Not Available

Connector No: D3157A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Power Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

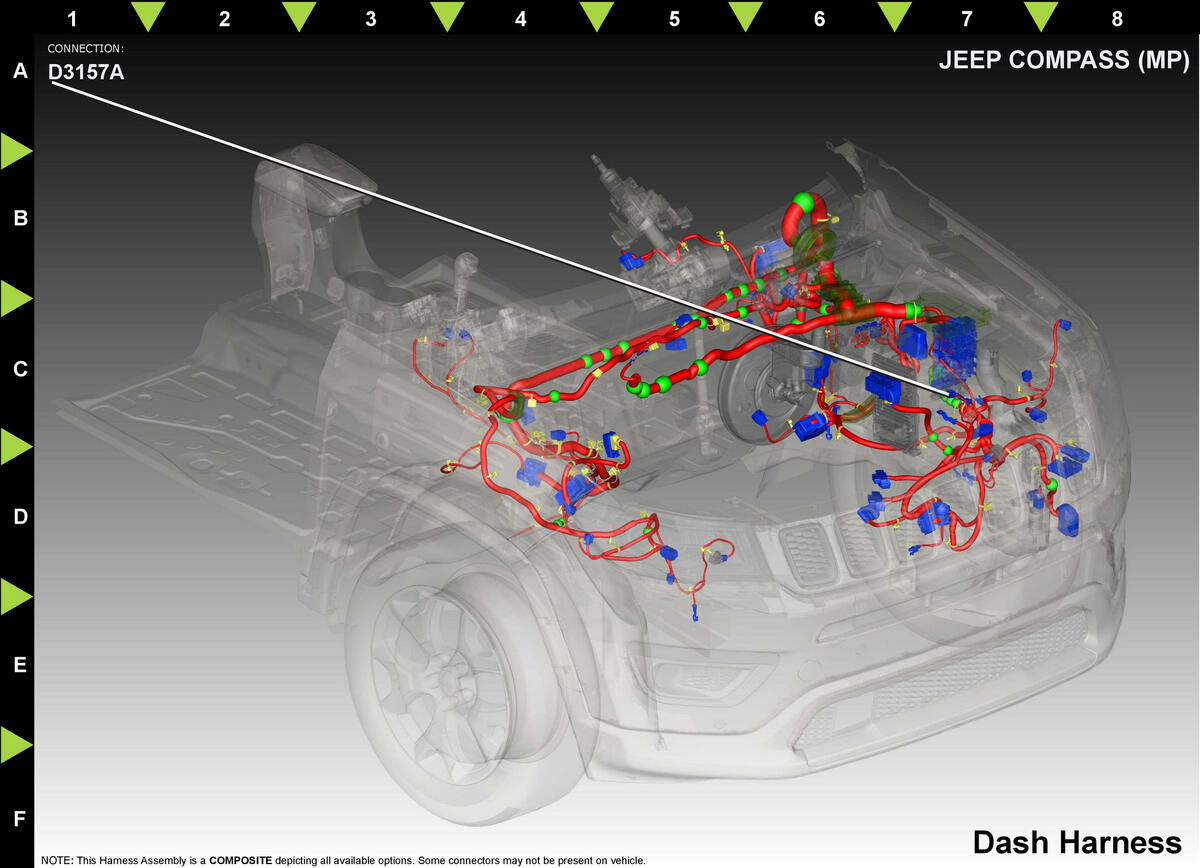

Fig 2: Relay-Power Control C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T760

DG/BG

0.75

PCR CONTROL RELAY OUTPUT

N/A

Z913

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
